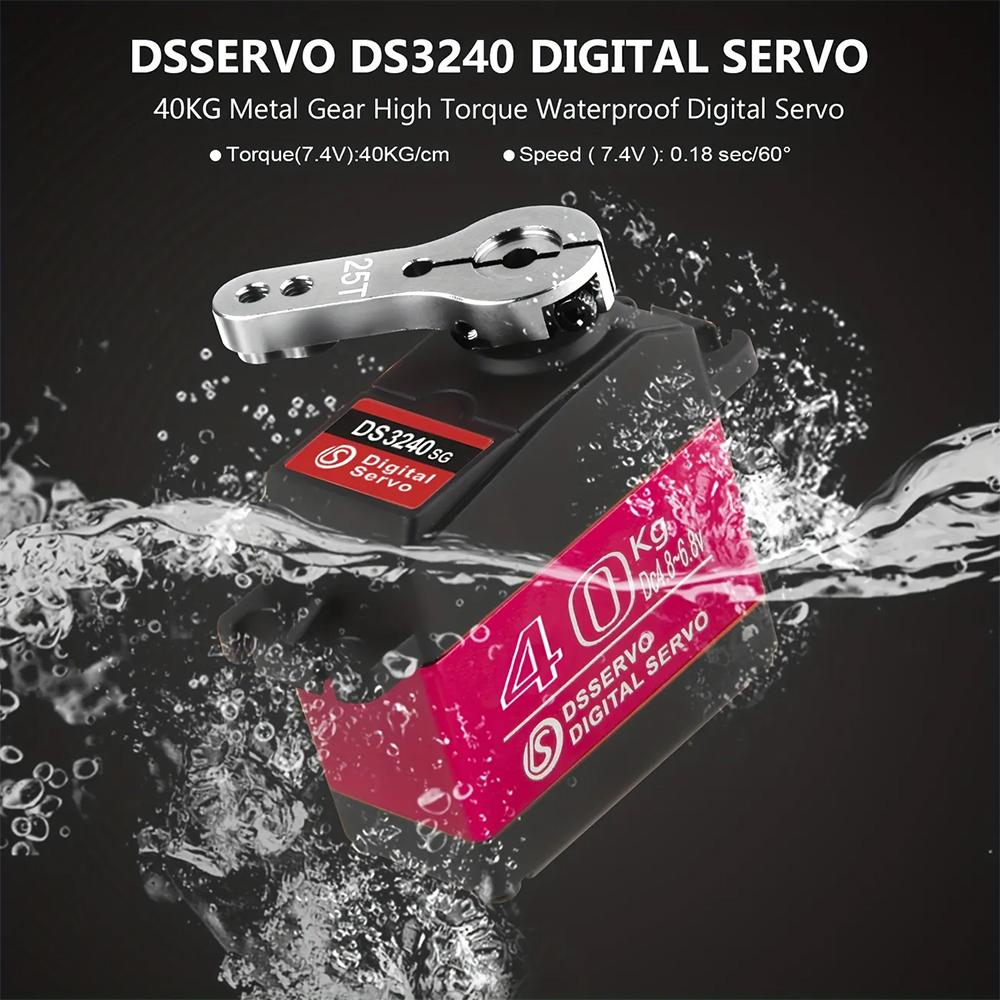

DS3240MG 40KG Metal Gear Digital Servo Motor – 180° High Torque

DS3240MG 40KG High Torque Metal Gear Digital Servo Motor – 180°

The DS3240MG is a professional-grade digital servo built for the most demanding RC aircraft, robotics, and Arduino applications. Delivering a massive 40KG·cm of torque with a precise 180° rotation range, this servo is the go-to choice for large-scale control surfaces, heavy mechanical linkages, and industrial robotic joints where nothing less than maximum performance will do.

Key Features

• 40KG·cm Torque – Industry-leading holding and actuation power for large RC aircraft, heavy-lift drones, and industrial robotics
• Full Metal Gear Train – Hardened metal gears engineered to withstand extreme loads without stripping
• Digital Signal Processing – Ultra-fast response, high resolution, and rock-solid holding torque vs. analogue servos
• 180° Operating Angle – Precise range of motion for ailerons, elevators, rudders, flaps, and robotic joints
• Arduino Compatible – Standard PWM interface works seamlessly with Arduino, flight controllers, and RC receivers
• Dual Ball Bearings – Low-friction output shaft for smooth, consistent, and repeatable actuation

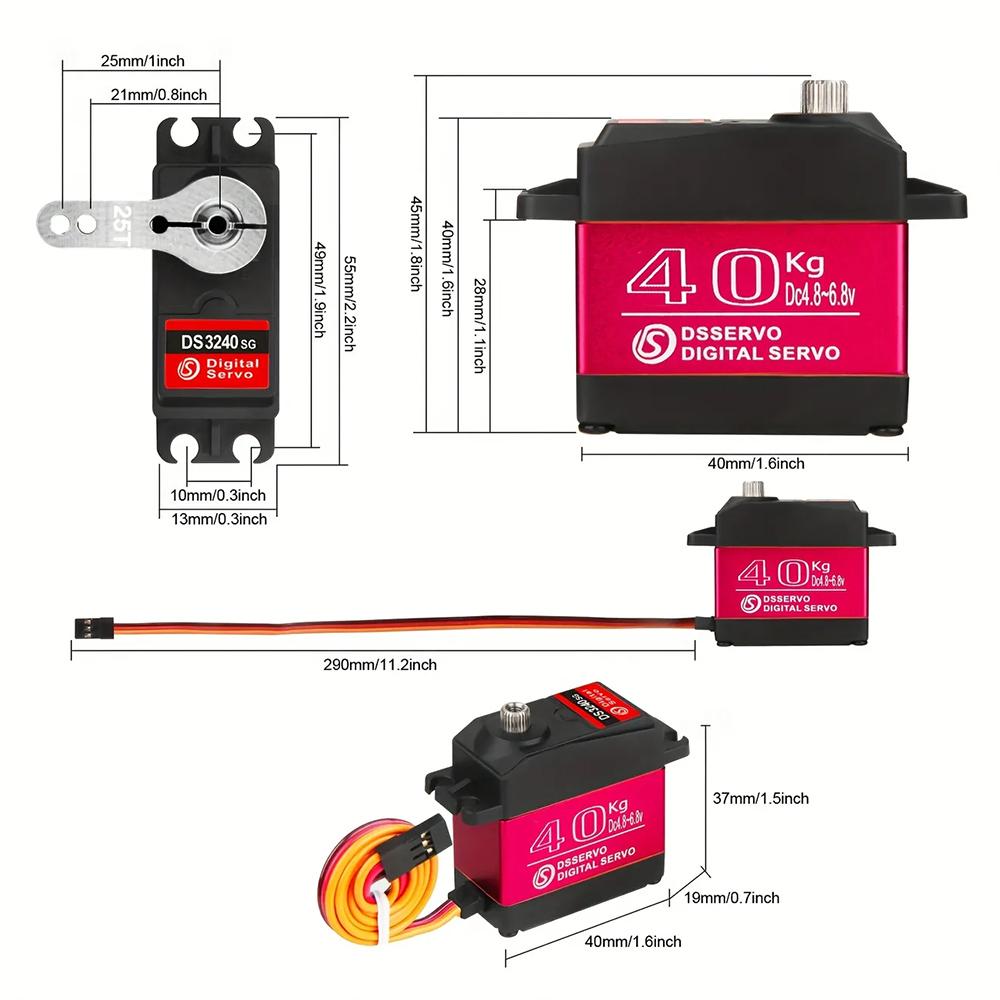

Specifications

• Torque: 40KG·cm (6V)
• Operating Voltage: 4.8V – 6.8V
• Operating Angle: 180°
• Speed: 0.14 sec/60° (6V)
• Gear Material: Full Metal
• Connector: JR / Futaba compatible (universal 3-pin)
• Weight: ~70g

Whether you're powering a large fixed-wing RC aircraft, a heavy-lift multirotor, or an Arduino-driven industrial robotic arm, the DS3240MG delivers unmatched torque and precision in a compact, robust package.
