DS3235 High Torque Digital Servo 35KG 180 Degree Metal Gear

DS3235 High Torque Digital Servo – 35KG | 180° | Metal Gear

When standard servos just don’t cut it, the DS3235 steps in with a commanding 35kg/cm torque output and a full 180° rotation range. Built with a full metal gear train and digital control electronics, this servo is engineered for large-scale RC aircraft, heavy-duty robotic systems, and demanding automation applications where precision and raw power must coexist. Mount it once, trust it every time.

Key Specifications

• Model: DS3235
• Type: Digital Servo
• Torque: 35 kg/cm (at 6.8V)
• Rotation Angle: 180°

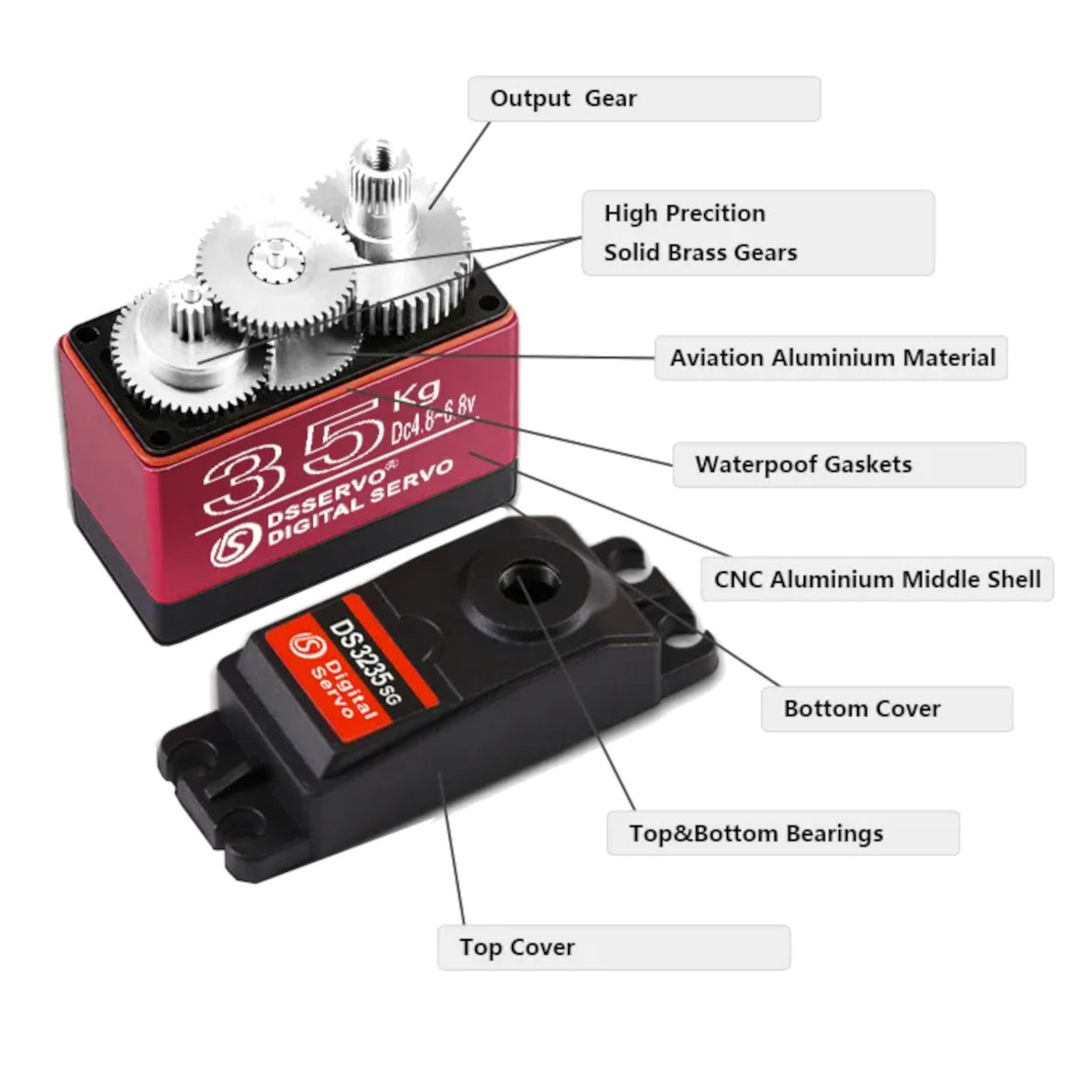

• Gear Material: Full metal gears

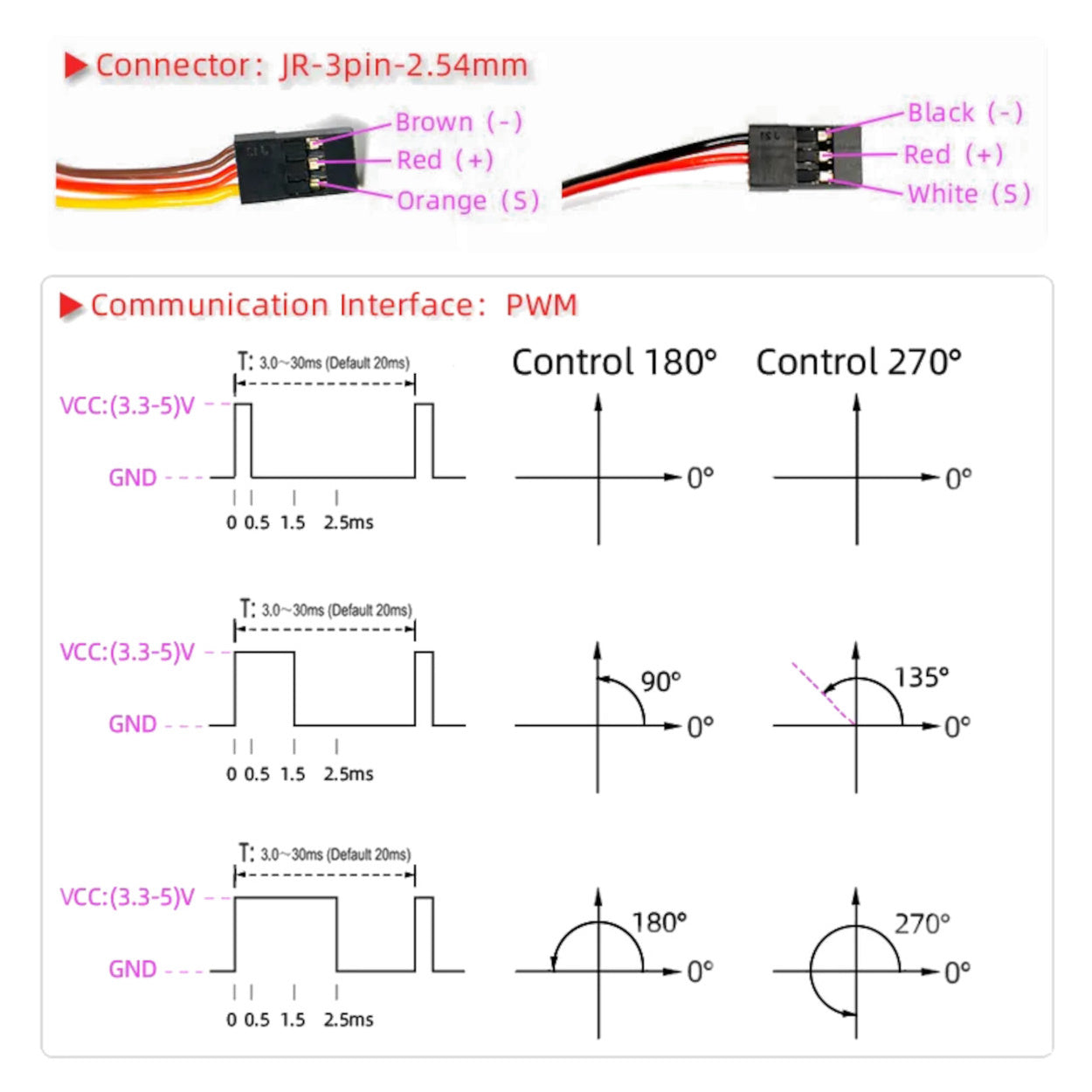

• Control Signal: PWM digital signal
• Operating Voltage: 4.8V – 6.8V
• Connector: Standard JR/Futaba compatible
• Weight: ~60g

Key Features

• 35kg/cm torque – exceptional power for large control surfaces and heavy robotic joints
• Full metal gear train for maximum durability under high and sustained loads
• Digital control for fast response, accurate positioning, and strong holding torque
• 180° travel range suitable for most RC and robotics linkage setups
• Wide voltage compatibility (4.8V–6.8V) for use with standard RC systems
• Compact form factor relative to its torque output

Applications

• Large-scale RC aircraft (ailerons, elevator, rudder, flaps)
• RC cars, trucks, and crawlers (steering and throttle)
• Robotic arms, grippers, and heavy-duty joints
• Industrial automation and motion control
• Pan-tilt camera mounts and gimbal systems
