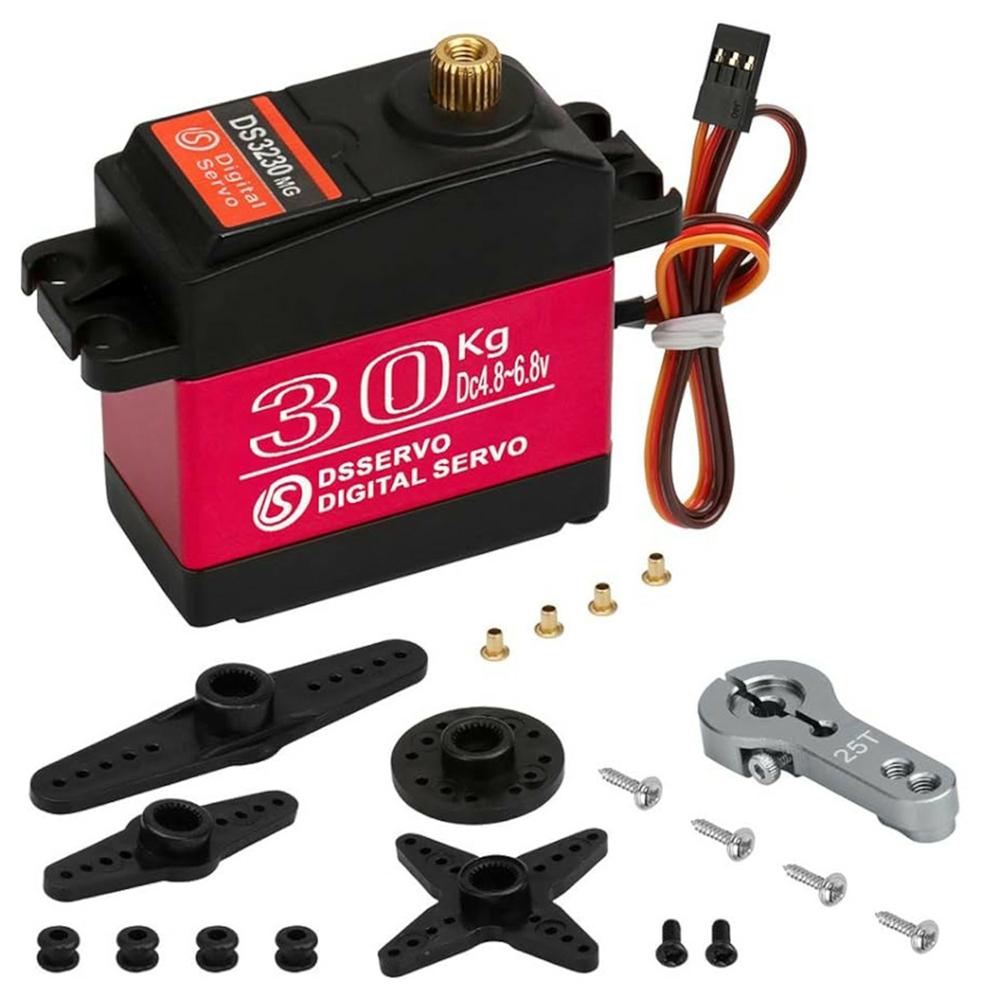

DS3230MG 30KG Metal Gear Digital Servo Motor – 270° High Torque

DS3230MG 30KG High Torque Metal Gear Digital Servo Motor – 270°

The DS3230MG 270° is a heavy-duty digital servo engineered for RC aircraft, robotics, and Arduino projects that demand both maximum torque and an extended rotation range. With 30KG·cm of torque and a wide 270° operating angle, this servo opens up greater mechanical flexibility for complex linkages, pan-tilt systems, and multi-axis robotic joints.

Key Features

• 30KG·cm Torque – Exceptional holding and actuation power for large control surfaces and heavy mechanical loads
• 270° Operating Angle – Extended rotation range for pan-tilt mounts, robotic arms, camera gimbals, and multi-axis mechanisms
• Full Metal Gear Train – Hardened metal gears resist stripping under extreme load for long-term durability
• Digital Signal Processing – Faster response, higher resolution, and superior holding torque vs. analogue servos
• Arduino Compatible – Standard PWM interface works seamlessly with Arduino, flight controllers, and RC receivers
• Dual Ball Bearings – Smooth, low-friction output shaft for precise and consistent actuation

Specifications

• Torque: 30KG·cm (6V)
• Operating Voltage: 4.8V – 6.8V
• Operating Angle: 270°
• Speed: 0.16 sec/60° (6V)
• Gear Material: Full Metal
• Connector: JR / Futaba compatible (universal 3-pin)
• Weight: ~65g

Ideal for large fixed-wing RC aircraft, heavy-lift drones, camera pan-tilt rigs, and Arduino-powered robotic systems requiring extended range of motion with uncompromising torque.
