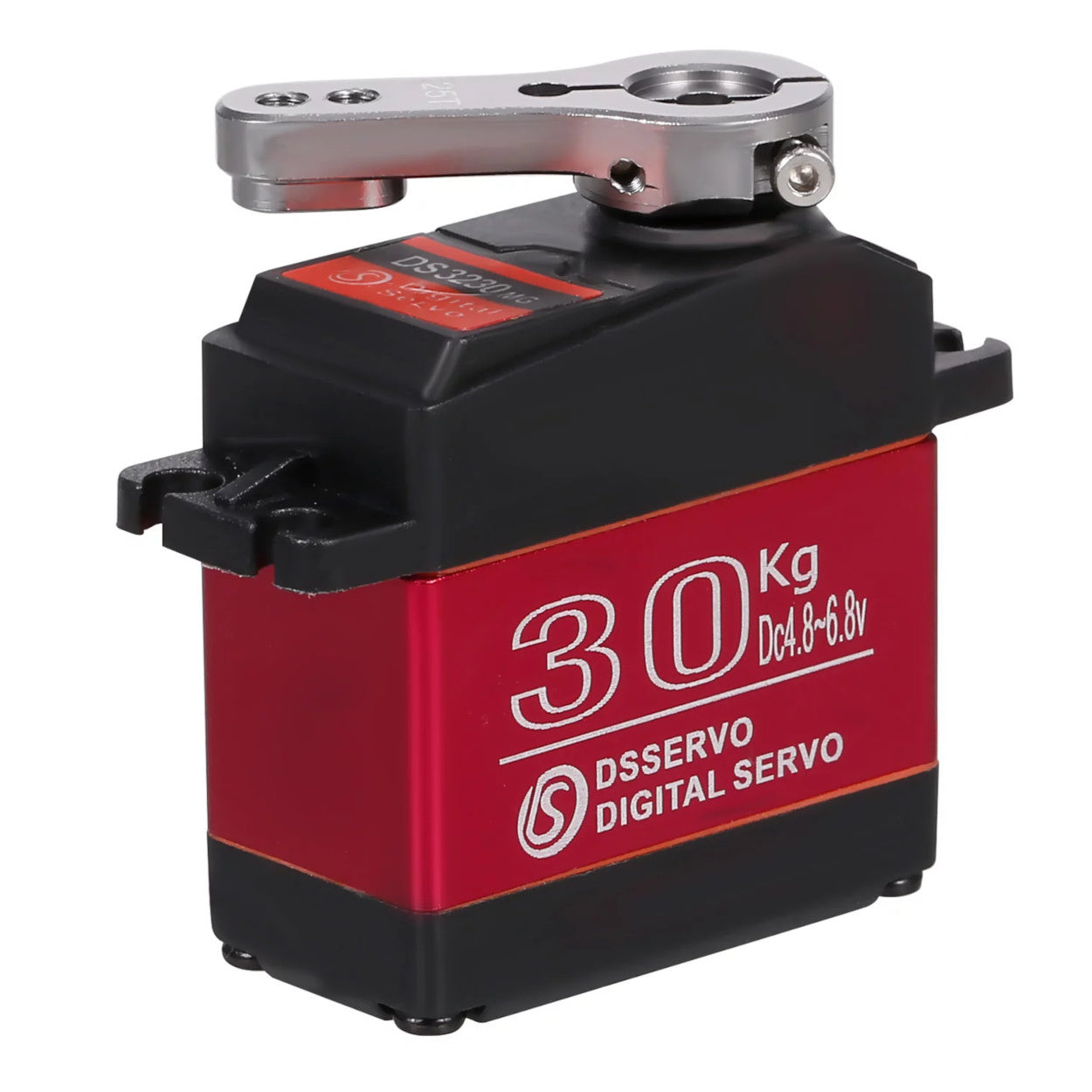

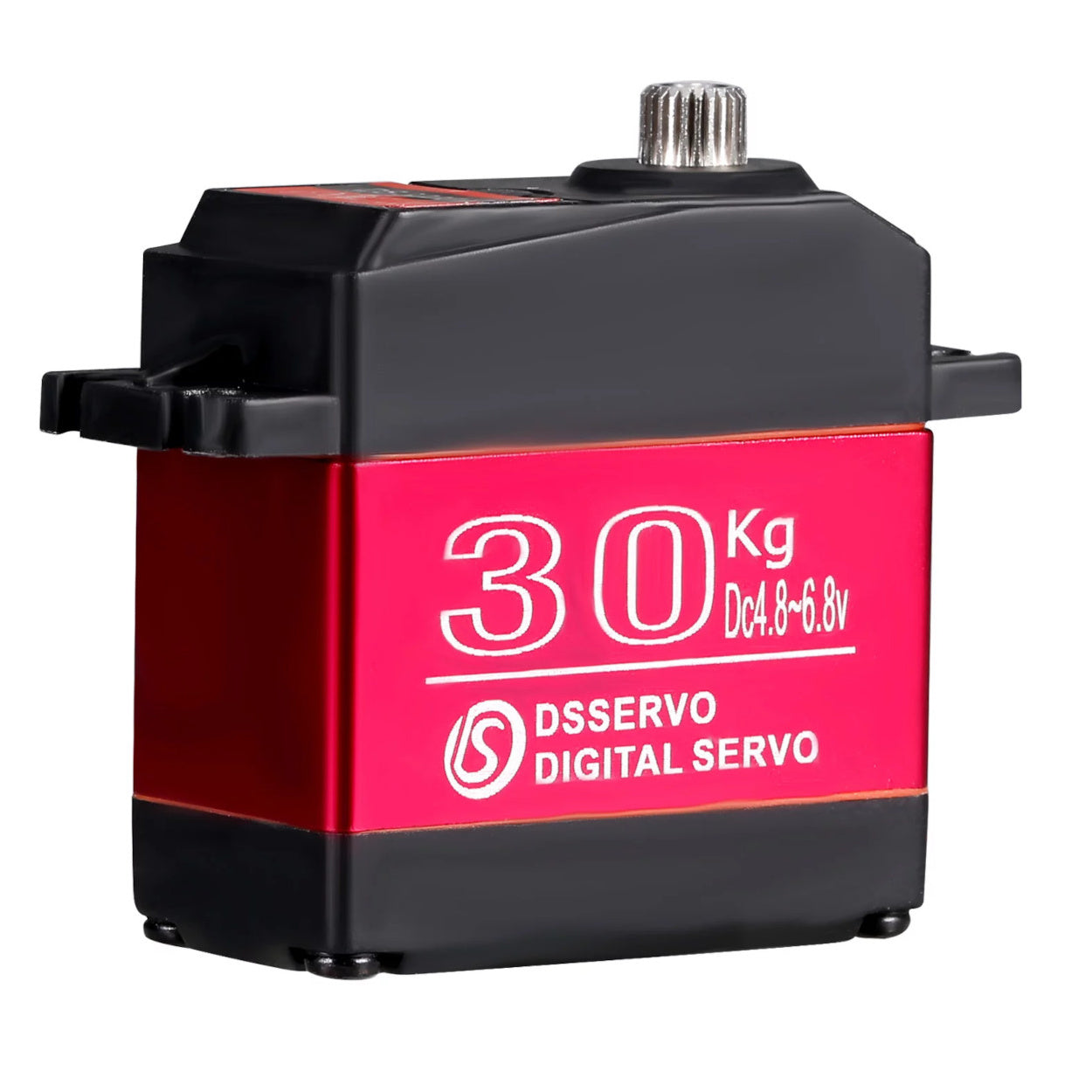

DS3230 High Torque Digital Servo 30KG 180 Degree Metal Gear

DS3230 High Torque Digital Servo – 30KG | 180° | Metal Gear

The DS3230 hits the sweet spot for builders who need serious torque without stepping into the ultra-heavy servo category. Delivering a robust 30kg/cm torque output with a full 180° rotation range and a durable full metal gear train, it’s perfectly suited for large-scale RC aircraft control surfaces, heavy robotic joints, and demanding automation linkages. Reliable, precise, and built to handle whatever your build throws at it.

Key Specifications

• Model: DS3230
• Type: Digital Servo
• Torque: 30 kg/cm (at 6.8V)
• Rotation Angle: 180°
• Gear Material: Full metal gears
• Control Signal: PWM digital signal
• Operating Voltage: 4.8V – 6.8V
• Connector: Standard JR/Futaba compatible
• Weight: ~60g

Key Features

• 30kg/cm torque – powerful performance for large RC aircraft and heavy robotic applications
• Full metal gear train for long-lasting durability under high load cycles
• Digital control for fast response, precise positioning, and strong holding torque
• 180° travel range for versatile RC and robotics linkage configurations
• Wide voltage range (4.8V–6.8V) compatible with most RC receivers and flight controllers

Applications

• Large-scale RC aircraft (ailerons, elevator, rudder, flaps)
• RC cars, trucks, and heavy crawlers
• Robotic arms and heavy-duty joints
• Industrial automation and motion control
• Pan-tilt systems and camera gimbals
