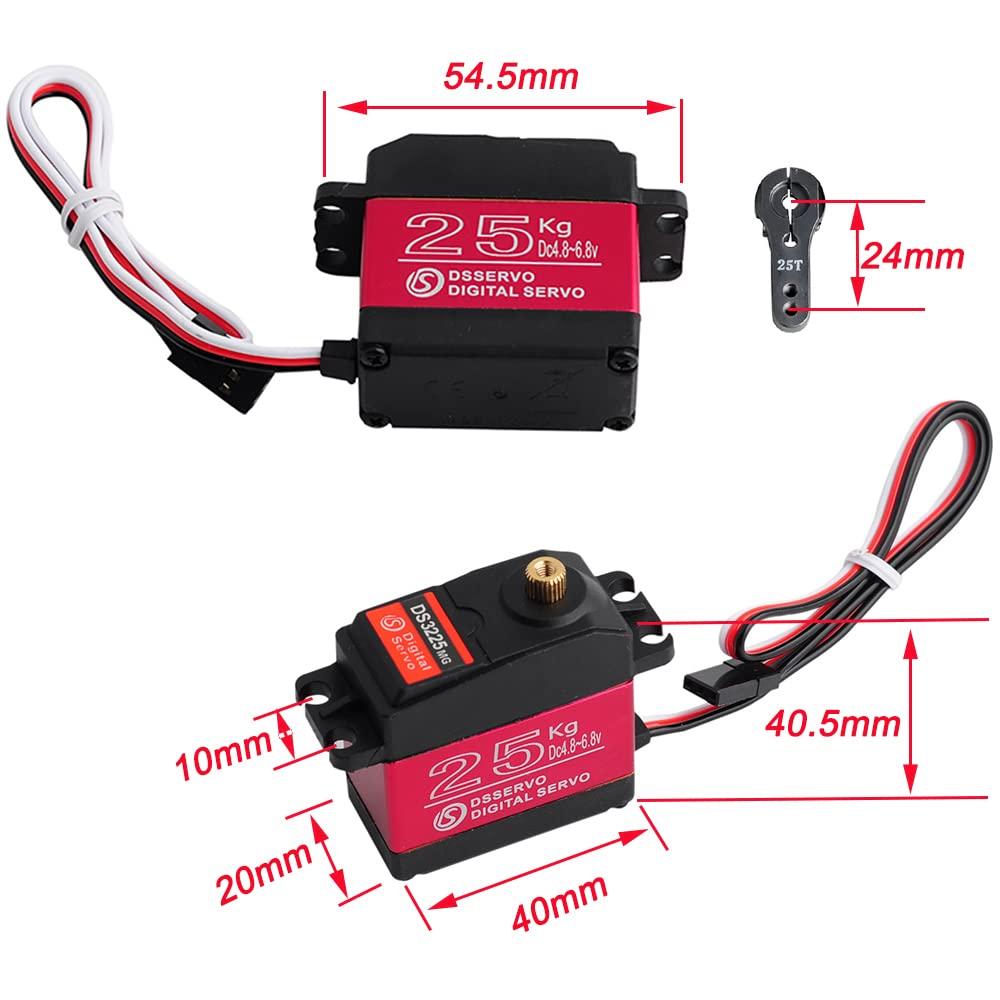

DS3225MG 25KG Metal Gear Digital Servo Motor – 180° High Torque

DS3225MG 25KG High Torque Metal Gear Digital Servo Motor

The DS3225MG is a high-performance digital servo engineered for demanding RC aircraft, robotics, and Arduino projects where precision and raw torque are non-negotiable. With a staggering 25KG·cm of torque and full 180° rotation range, this servo delivers reliable, repeatable control in the most challenging conditions.

Key Features

• 25KG·cm Torque – Exceptional holding and actuation power for heavy control surfaces and mechanical linkages
• Metal Gear Train – Hardened metal gears resist stripping under high load, ensuring long service life
• Digital Signal Processing – Faster response, higher resolution, and better holding torque vs. analogue servos
• 180° Operating Angle – Wide range of motion ideal for ailerons, elevators, rudders, and robotic joints
• Arduino Compatible – Standard PWM interface works seamlessly with Arduino, flight controllers, and RC receivers
• Dual Ball Bearings – Smooth, low-friction output shaft for precise, consistent movement

Specifications

• Torque: 25KG·cm (6V)
• Operating Voltage: 4.8V – 6.8V
• Operating Angle: 180°
• Speed: 0.18 sec/60° (6V)
• Gear Material: Full Metal
• Connector: JR / Futaba compatible (universal 3-pin)
• Weight: ~60g

Whether you're building a fixed-wing RC aircraft, a heavy-lift drone, or an Arduino-powered robotic arm, the DS3225MG delivers the torque and precision you need.
