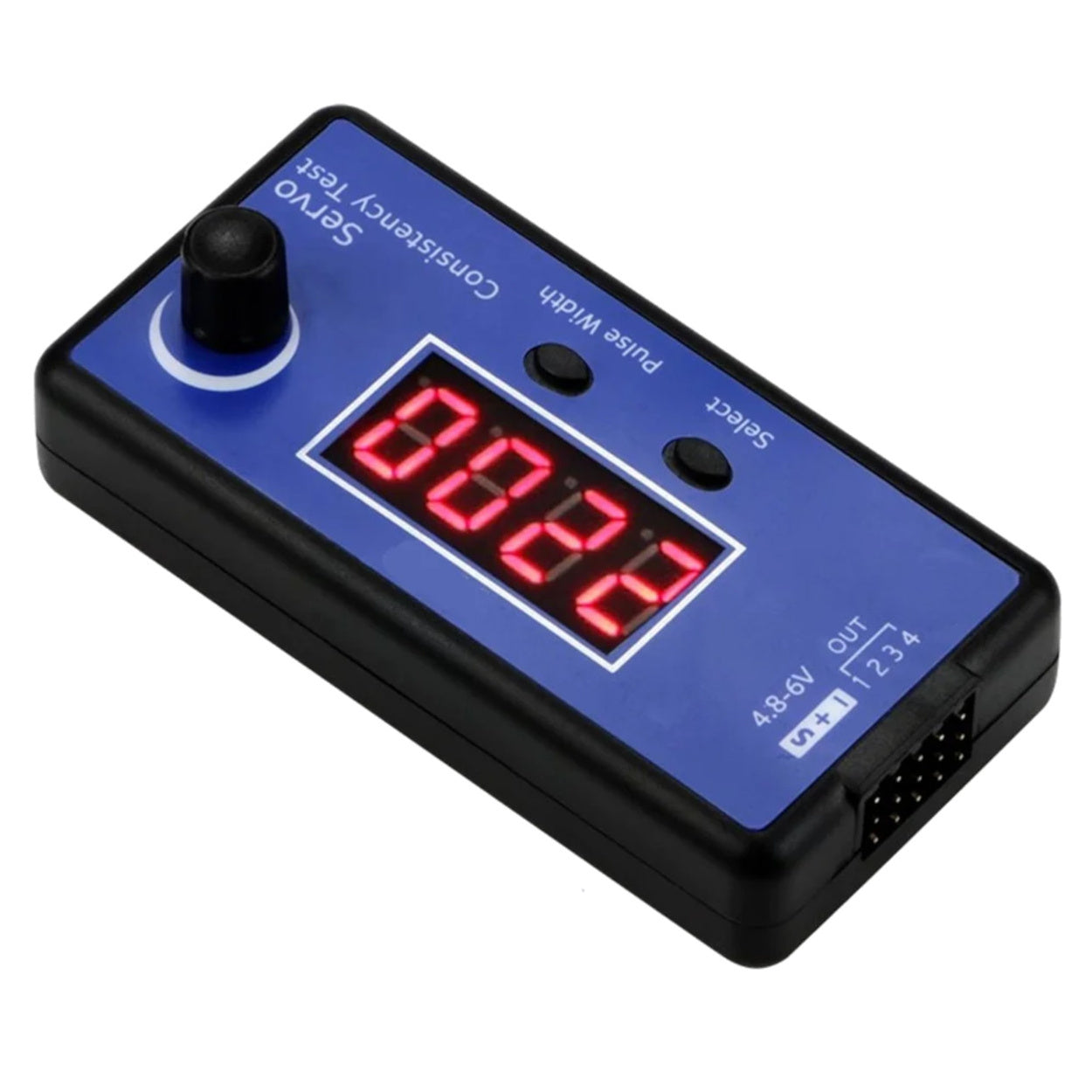

Digital Servo Tester & ESC Consistency Checker 4-Channel 3-Mode

Digital Servo Tester & ESC Consistency Checker 4-Channel 3-Mode

Diagnostic Tool for RC Planes & Cars

Specifications

• Product: Servo Tester

• Model: Pro-Grade Digital

• Input Voltage: 4.8V – 6.0V DC (Strict Limit)

• Output Channels: 4 Synchronised Ports (Test 4 servos at once)

• Output Signal Precision: 2µs (microseconds)

• Pulse Width Range: 800 – 2200µs

• Selectable Signal Modes:

  • 50H: Analog Servos (50Hz frequency, 20µs cycle)

  • 125H: Digital Servos (125Hz frequency, 8µs cycle)

  • 250H: High-Speed Digital Servos (250Hz frequency, 4µs cycle)

• Operational Modes: Manual (Knob), Neutral (Centre), Automatic (Wiper Sweep)

• Dimensions: 75mm x 38mm x 25mm
