Diatone Mamba MK4 H743 V2 Flight Controller Stack + F65A 128K 3-6S 65A ESC

Diatone Mamba MK4 H743 V2 Flight Controller Stack + F65A 128K 3-6S 65A ESC

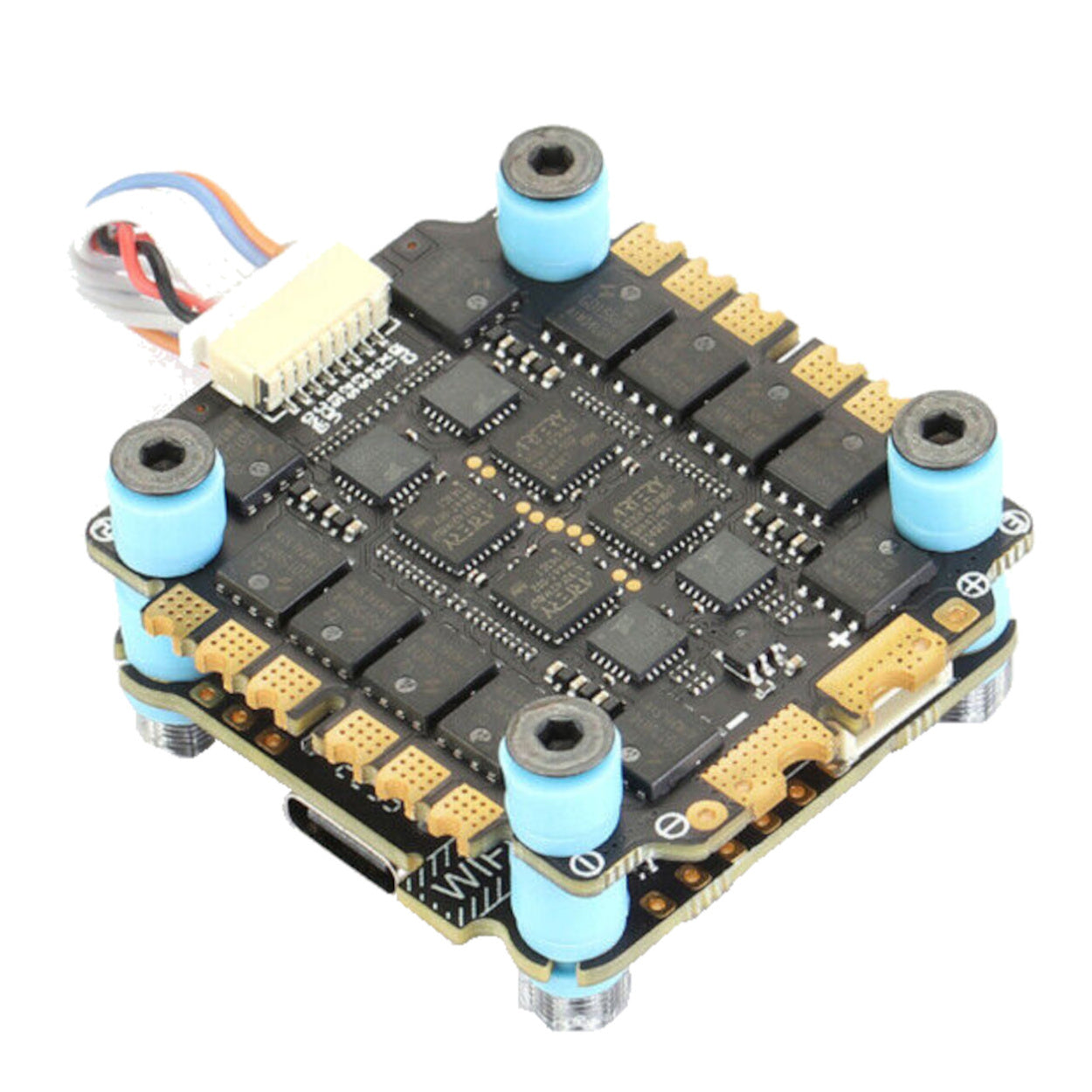

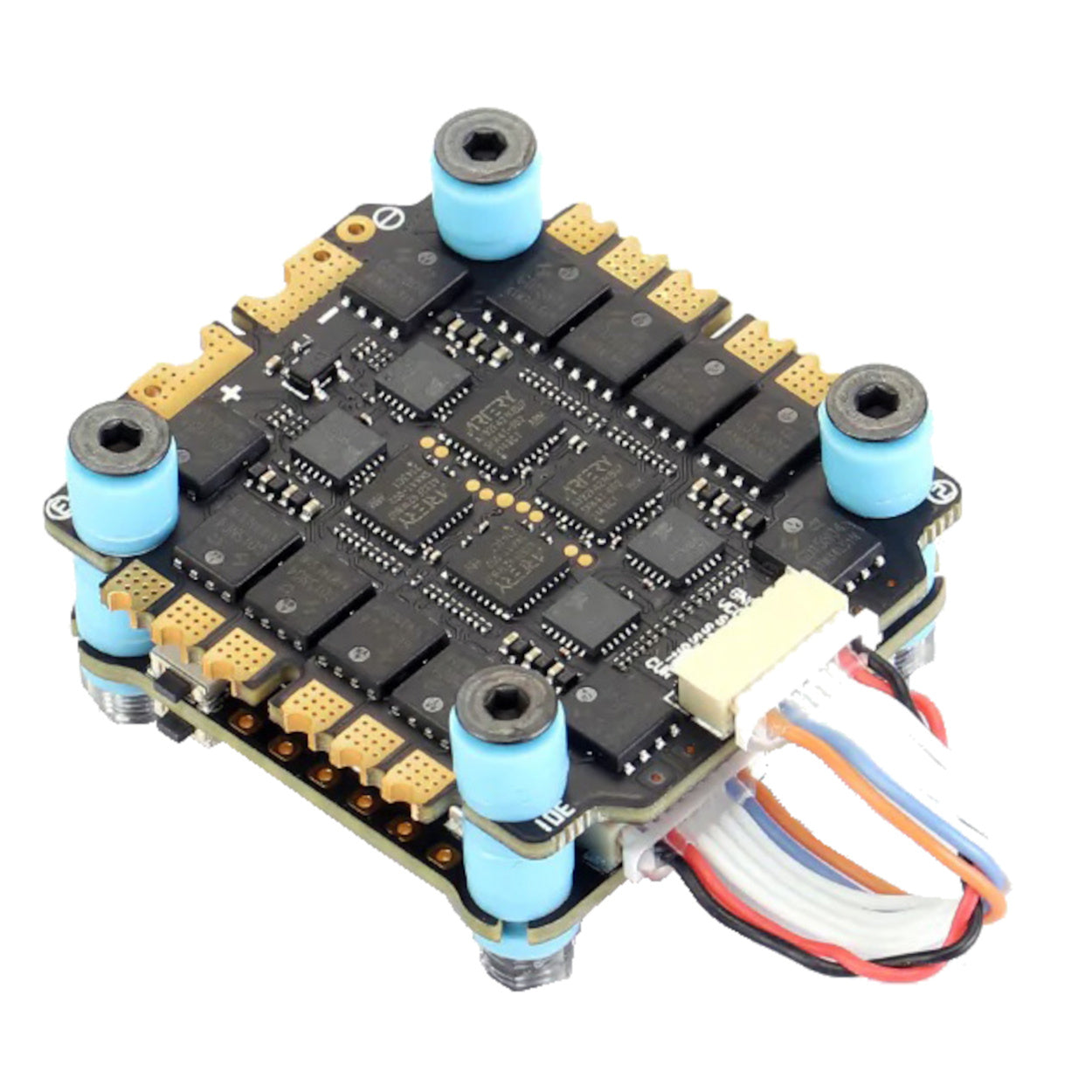

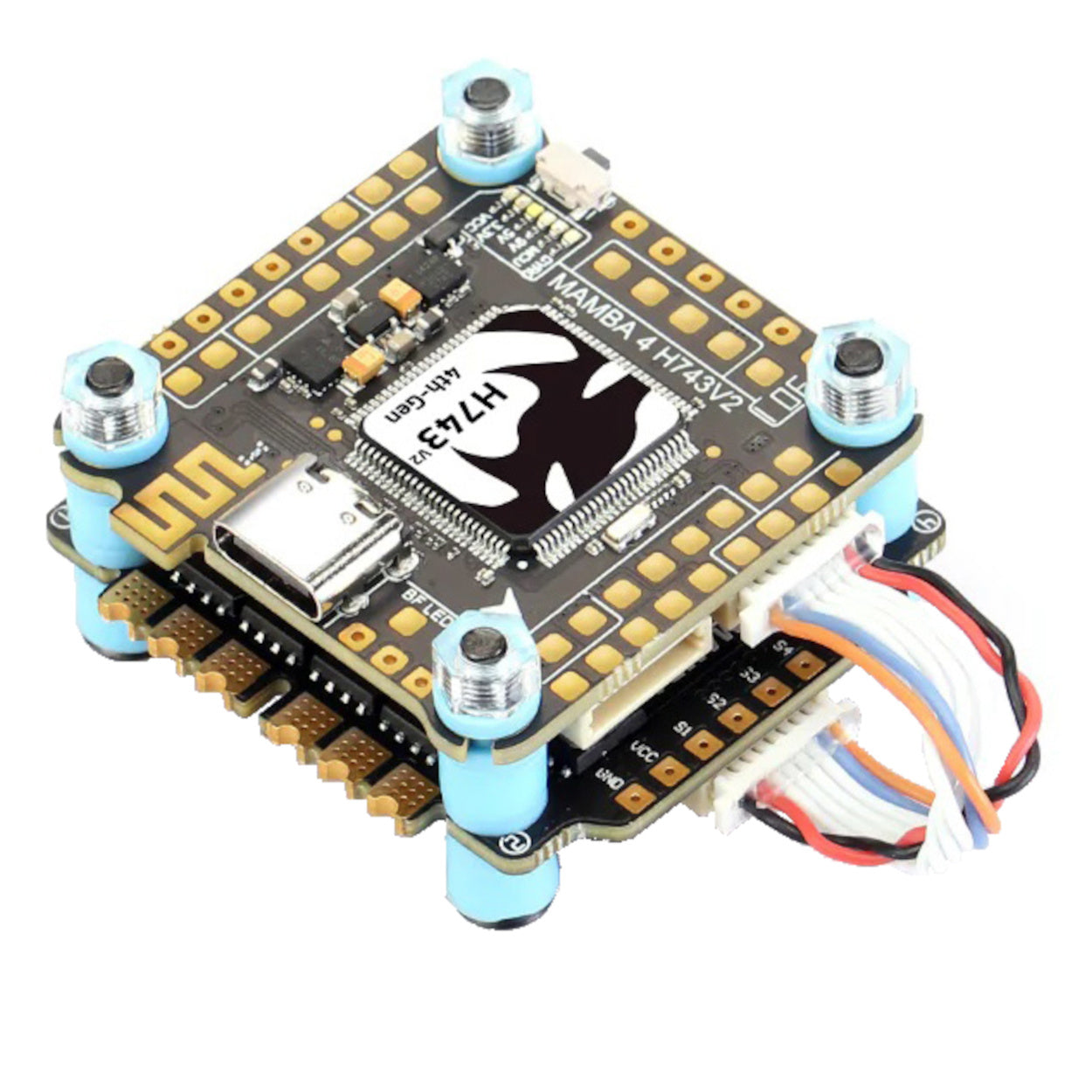

The Diatone Mamba MK4 H743 V2 Stack is a premium flight controller and ESC combo designed for high-performance 5-inch FPV freestyle and racing drones. Pairing the powerful STM32H743 processor-based flight controller with the F65A 128K BLHeli-32 4-in-1 ESC, this stack delivers the processing power, sensor accuracy, and motor control precision that top-level FPV pilots demand.

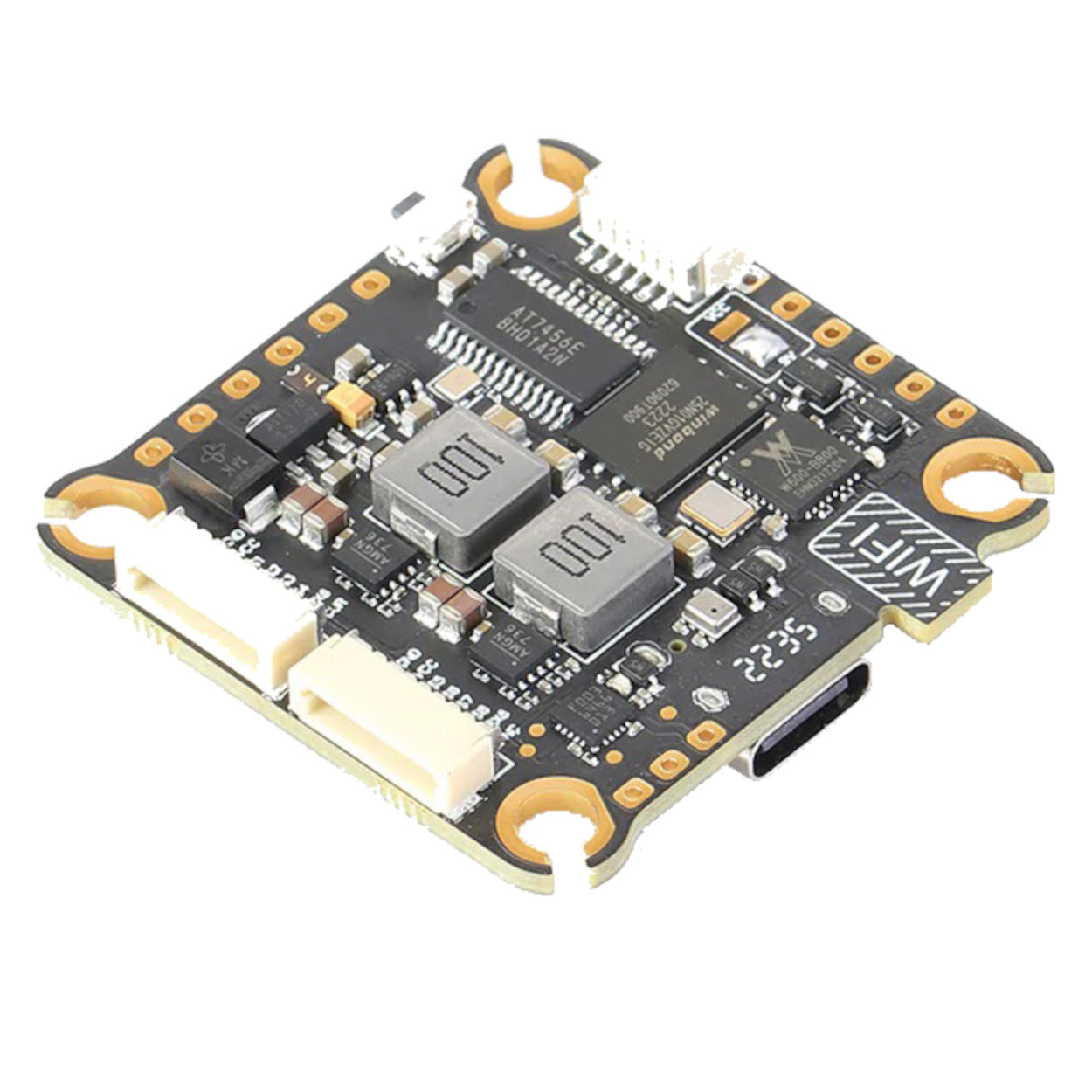

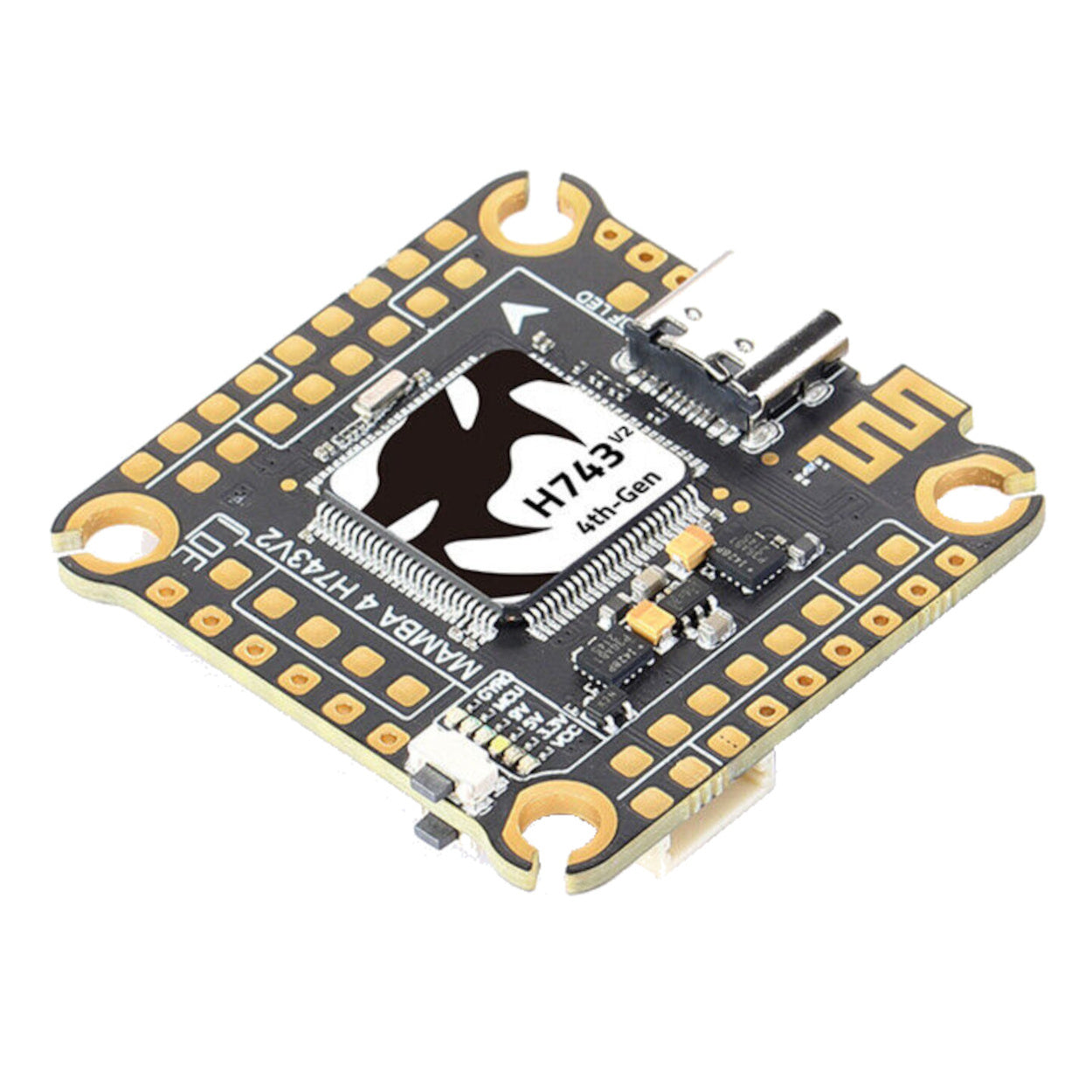

Flight Controller – Mamba MK4 H743 V2

• Processor: STM32H743 (480MHz) – the most powerful FC processor available for FPV
• Gyro: ICM-42688-P (high-performance, low-noise 6-axis IMU)
• Firmware: Betaflight (latest versions fully supported)
• Barometer: Yes
• OSD: Integrated AT7456E OSD chip
• Blackbox: Onboard flash memory
• UARTs: Multiple UARTs for GPS, VTX, receiver, and peripheral connections
• Mounting: 30.5x30.5mm standard stack pattern

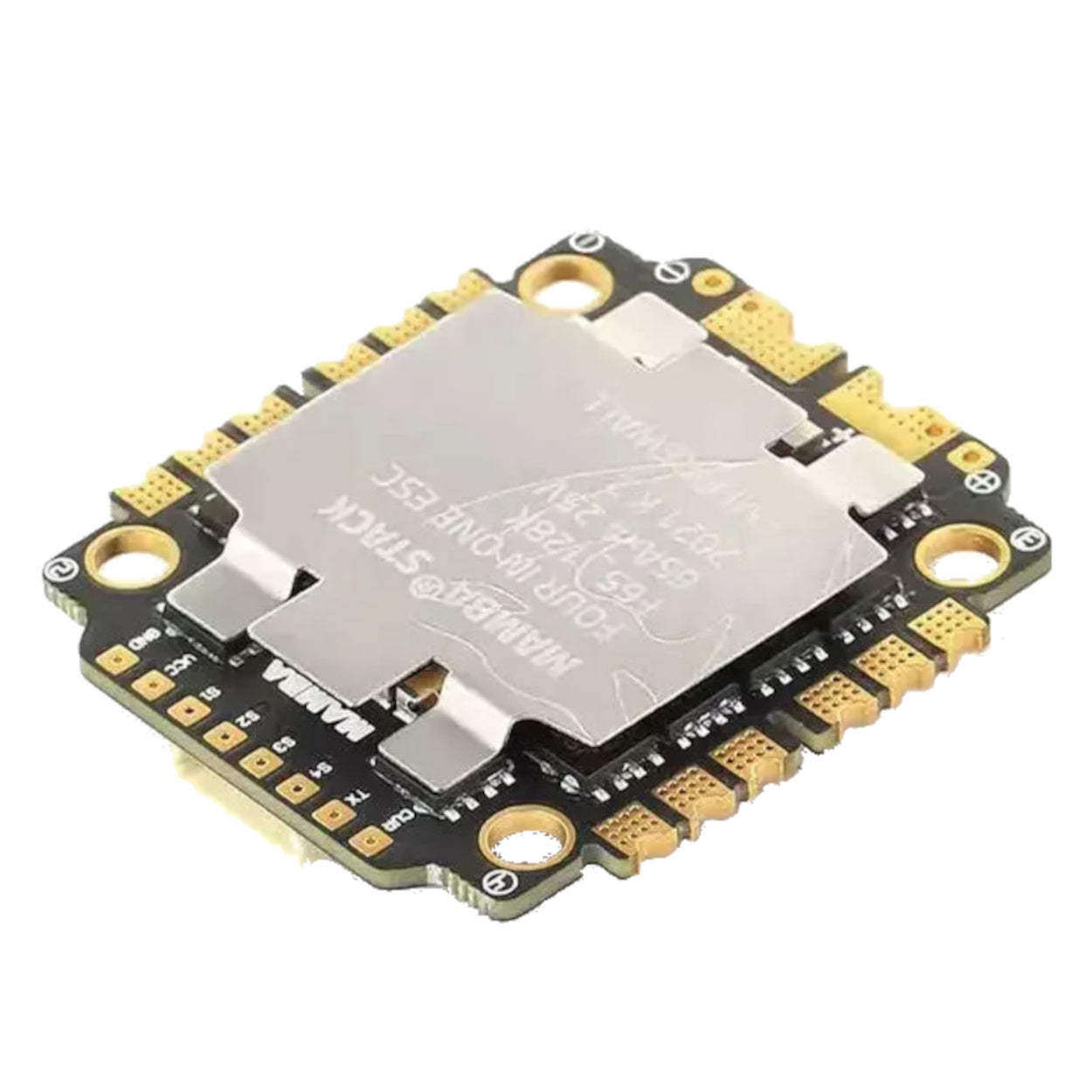

ESC – F65A 128K BLHeli-32 4-in-1

• Continuous Current: 65A per motor
• Voltage Range: 3S–6S LiPo (11.1V–22.2V)
• Firmware: BLHeli-32 at 128K PWM frequency
• Protocol Support: DSHOT300, DSHOT600, bidirectional DSHOT, RPM telemetry
• Mounting: 30.5x30.5mm standard stack pattern

Stack Highlights

• H743 processor handles Betaflight’s most demanding filtering and PID loops with headroom to spare
• 128K ESC PWM frequency delivers ultra-smooth, ultra-responsive motor control
• ICM-42688-P gyro provides clean, low-noise flight data for precise tune and feel
• Integrated OSD and blackbox simplify build wiring and data logging
• 3-6S voltage range supports a wide range of LiPo configurations

The complete high-performance stack for serious FPV builds — the Diatone Mamba MK4 H743 V2 + F65A combo gives freestyle and racing pilots the processing power, sensor quality, and motor control precision to extract maximum performance from their 5-inch builds.
