Diatone Mamba F65 128K BLHeli-32 4-in-1 ESC 4-6S 65A

Diatone Mamba F65 128K BLHeli-32 4-in-1 ESC – 4-6S | 65A

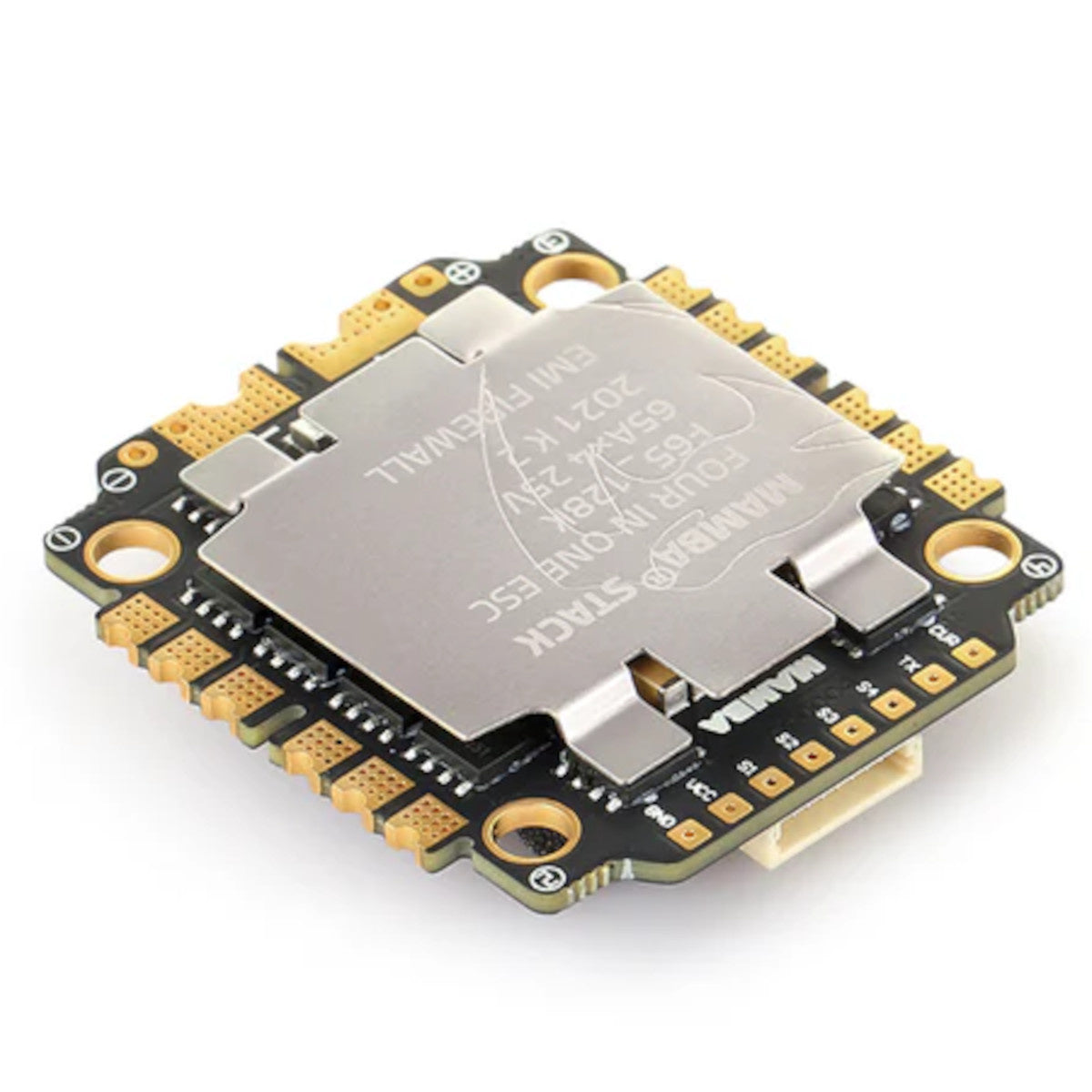

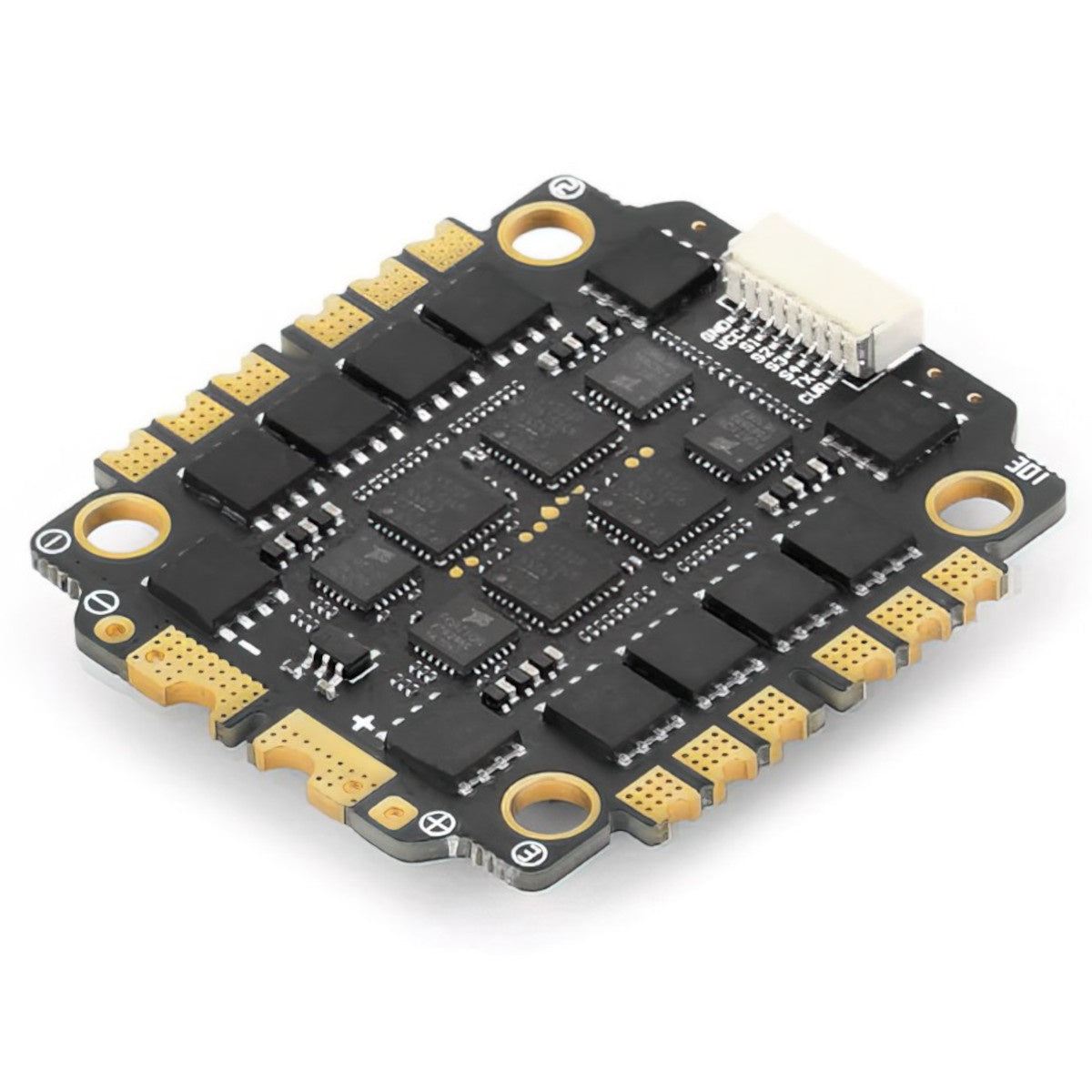

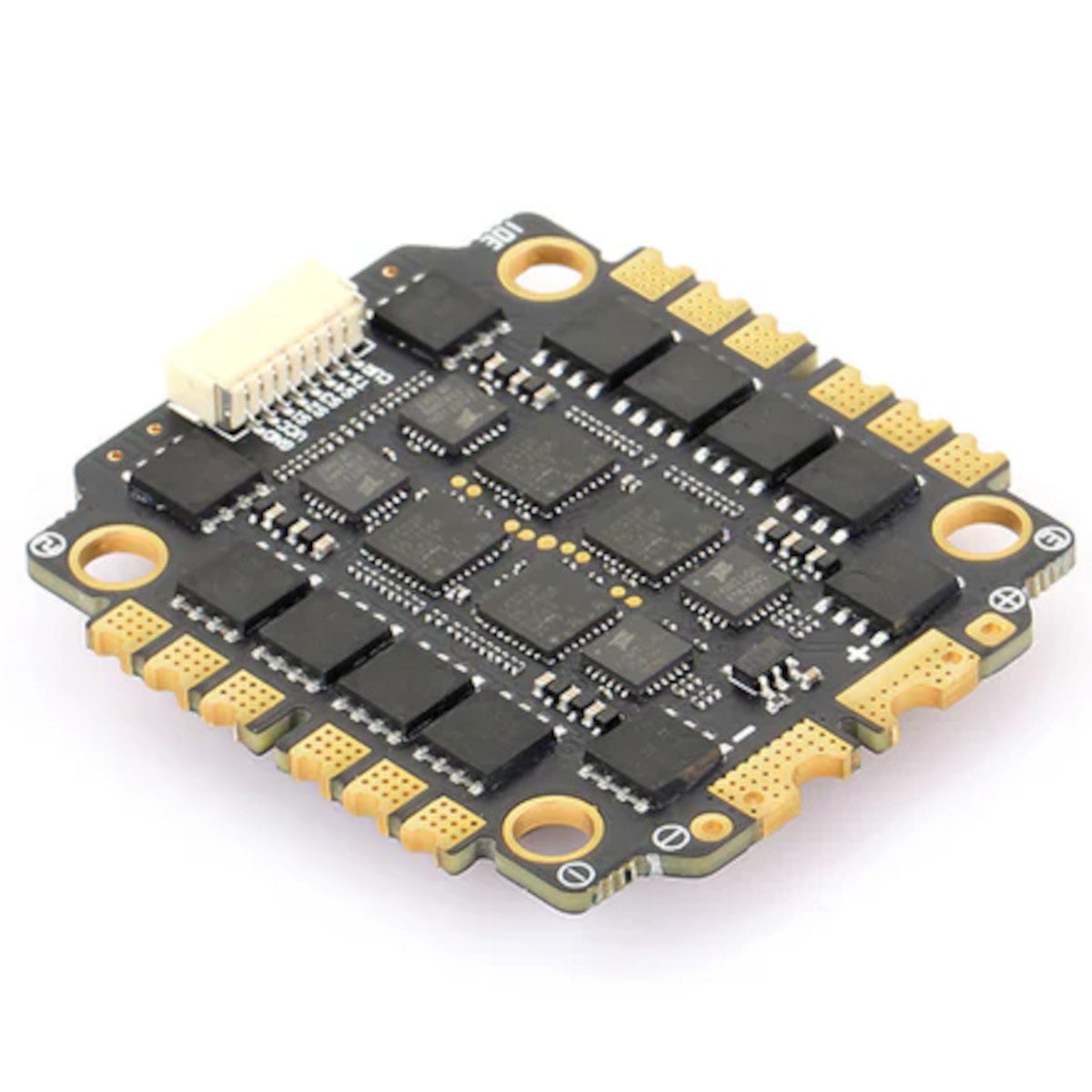

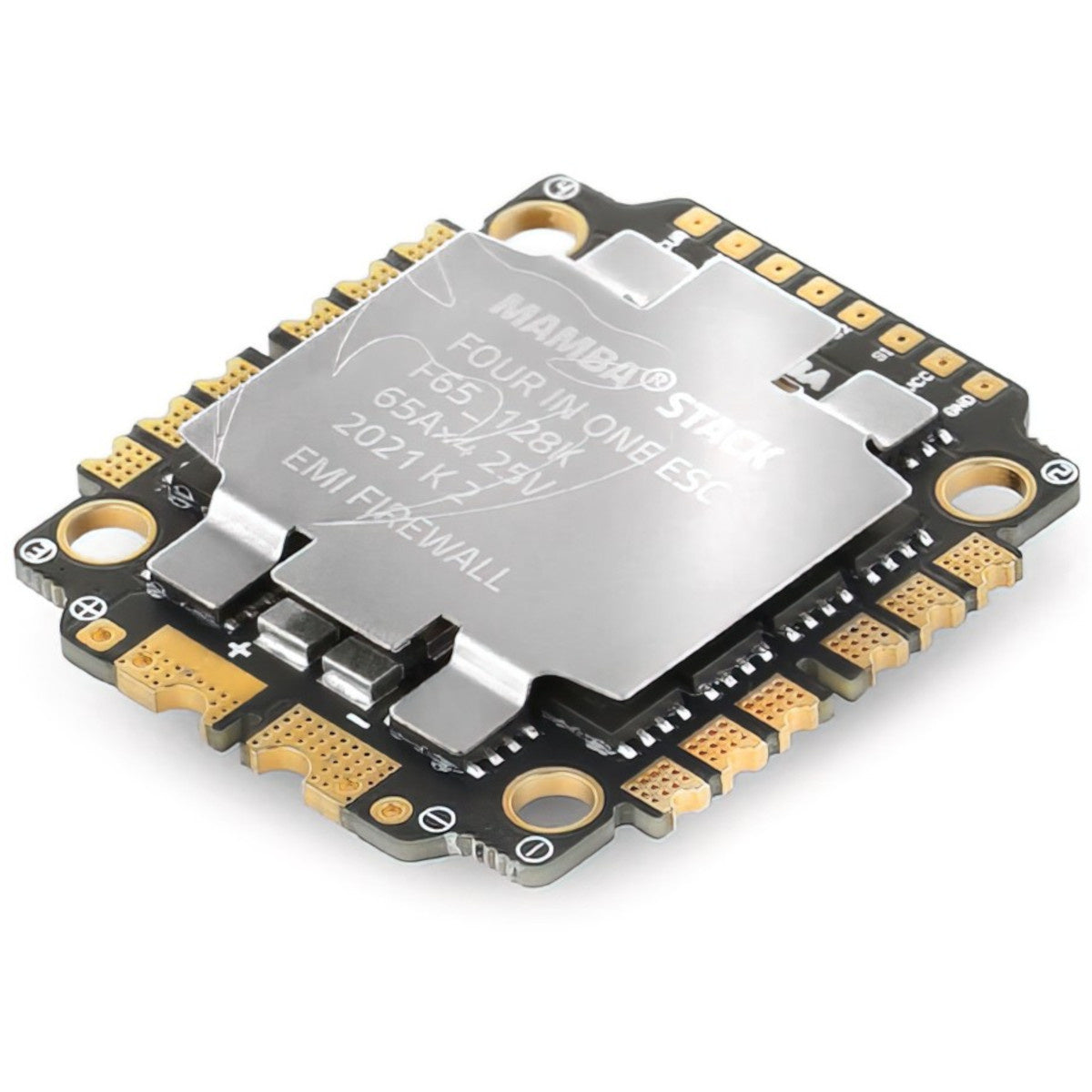

The Diatone Mamba F65 4-in-1 ESC is a high-performance, compact speed controller stack designed for 5-inch freestyle and racing FPV drones. Running BLHeli-32 firmware at 128K PWM frequency, it delivers ultra-smooth, ultra-responsive motor control with the low-latency performance that competitive FPV pilots demand. The 4-in-1 design integrates all four ESCs into a single board, reducing wiring complexity and weight while maximising power density.

• Brand: Diatone (Mamba series)
• Model: F65
• Firmware: BLHeli-32
• PWM Frequency: 128K
• Configuration: 4-in-1 (four ESCs on a single board)
• Continuous Current: 65A per motor
• Voltage Range: 4S–6S LiPo (14.8V–22.2V)
• Mounting: 30.5x30.5mm standard stack pattern
• Protocol Support: DSHOT300, DSHOT600, Multishot, Oneshot
• Features: Bidirectional DSHOT, RPM telemetry, programmable via BLHeli Suite/Configurator
• Application: 5-inch FPV freestyle and racing drones, high-performance quadcopters

Built for the demands of high-performance FPV — the Diatone Mamba F65 4-in-1 ESC combines 65A per channel current handling with BLHeli-32 128K firmware for the smoothest, most responsive motor control available, giving freestyle and racing pilots the precision and power they need to push their builds to the limit.
