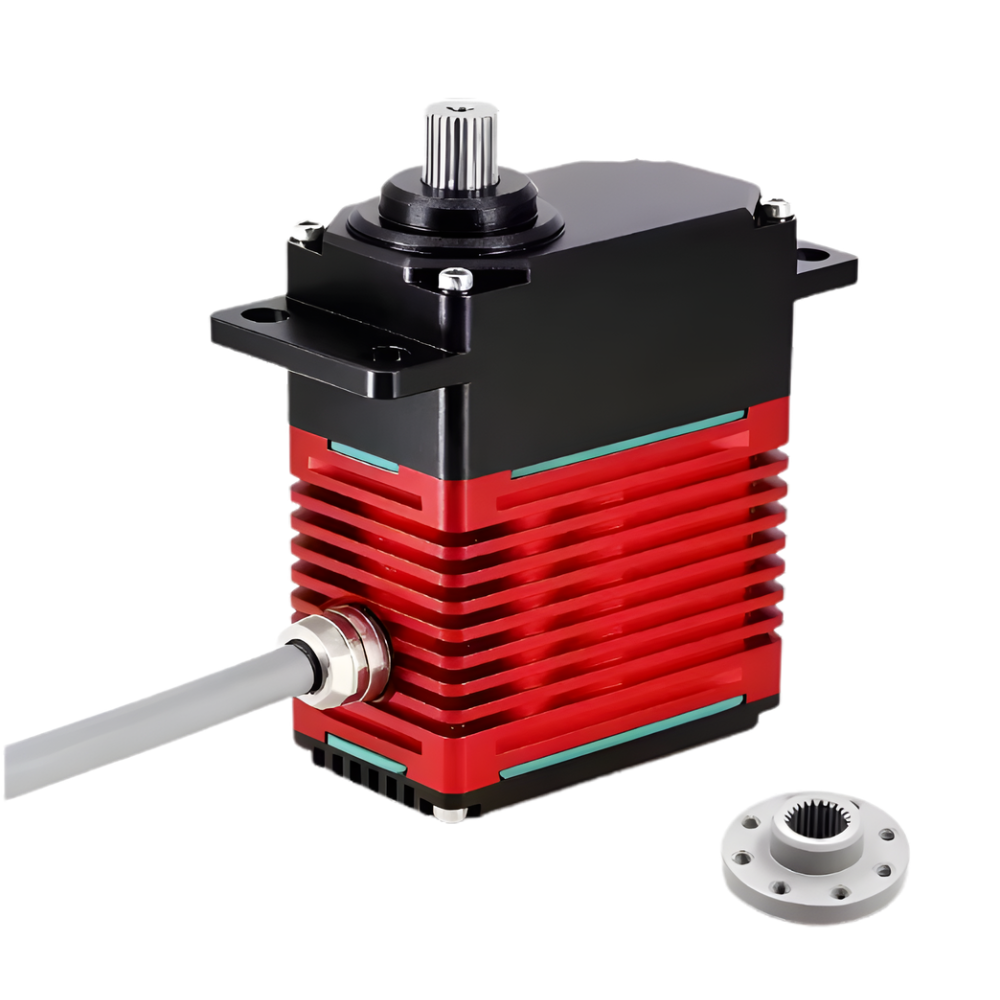

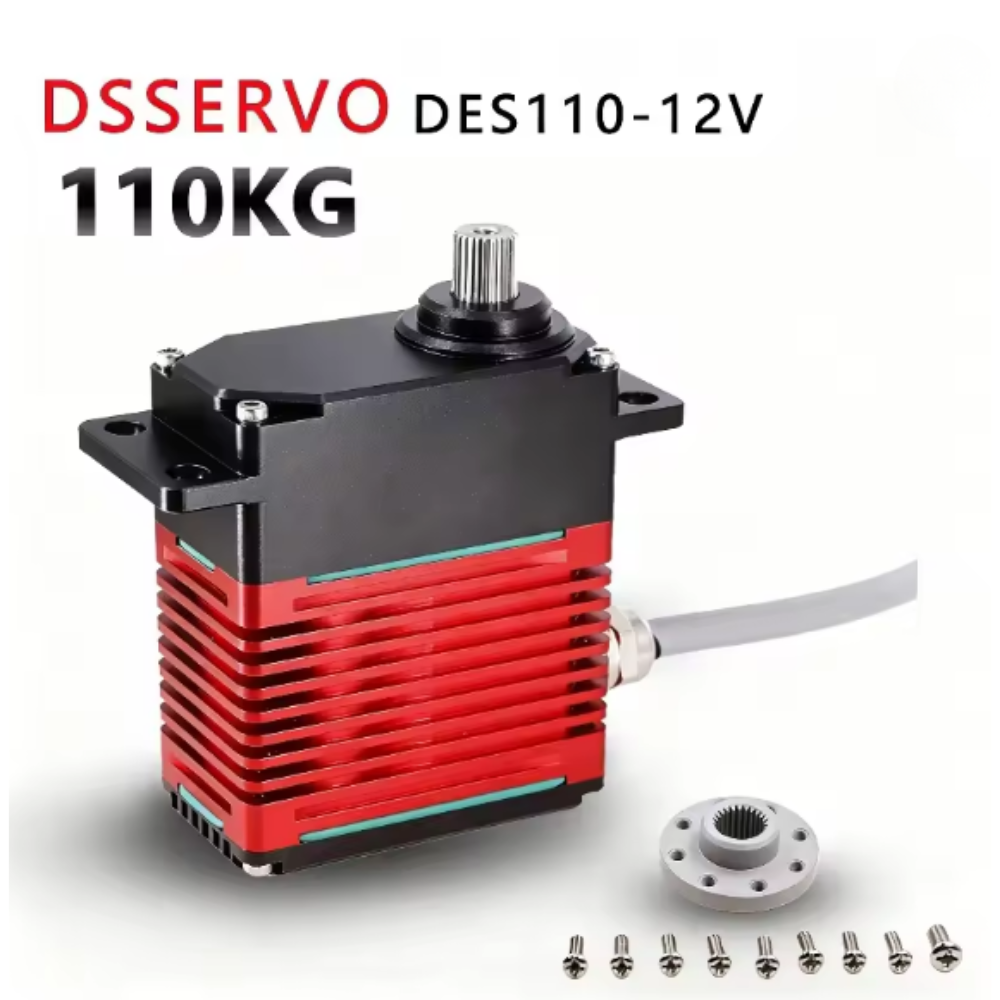

DES110 Brushless Digital Servo 110KG 270 Degree 12V High Torque

DES110 Brushless Digital Servo – 110KG | 270° | 12V | High Torque

The DES110 is an industrial-grade brushless digital servo that pushes the boundaries of what a servo can deliver. With a staggering 110kg/cm torque output, a wide 270° rotation range, and 12V high-voltage operation, it is purpose-built for the most extreme large-scale RC aircraft, heavy UAV platforms, and demanding industrial automation systems. The brushless motor core ensures maximum efficiency, lightning-fast response, and an exceptionally long service life – making the DES110 the definitive choice for builders who accept nothing less than the best.

Key Specifications

• Model: DES110
• Type: Brushless Digital Servo (High Voltage)
• Torque: 110 kg/cm (at 12V)
• Rotation Angle: 270°
• Gear Material: Full metal gears
• Motor Type: Brushless
• Control Signal: PWM digital signal
• Operating Voltage: 12V
• Connector: Standard JR/Futaba compatible

Key Features

• 110kg/cm torque at 12V – extraordinary power for the most demanding RC and industrial applications
• Brushless motor core – faster response, higher efficiency, and significantly longer lifespan vs brushed servos
• 270° rotation range for wider control surface deflection and extended robotic joint movement
• 12V high-voltage operation for maximum torque output and reduced current draw
• Full metal gear train for maximum durability under extreme and sustained loads
• Digital control for precise positioning, minimal deadband, and strong holding torque
• Robust aluminium case for heat dissipation and structural rigidity

Applications

• Giant-scale RC aircraft (main control surfaces, retract systems, steering)
• Heavy-lift drones and large UAV platforms
• Industrial robotics and heavy automation systems
• Heavy-duty RC vehicles, boats, and submarines
• Pan-tilt systems and heavy industrial camera gimbals
