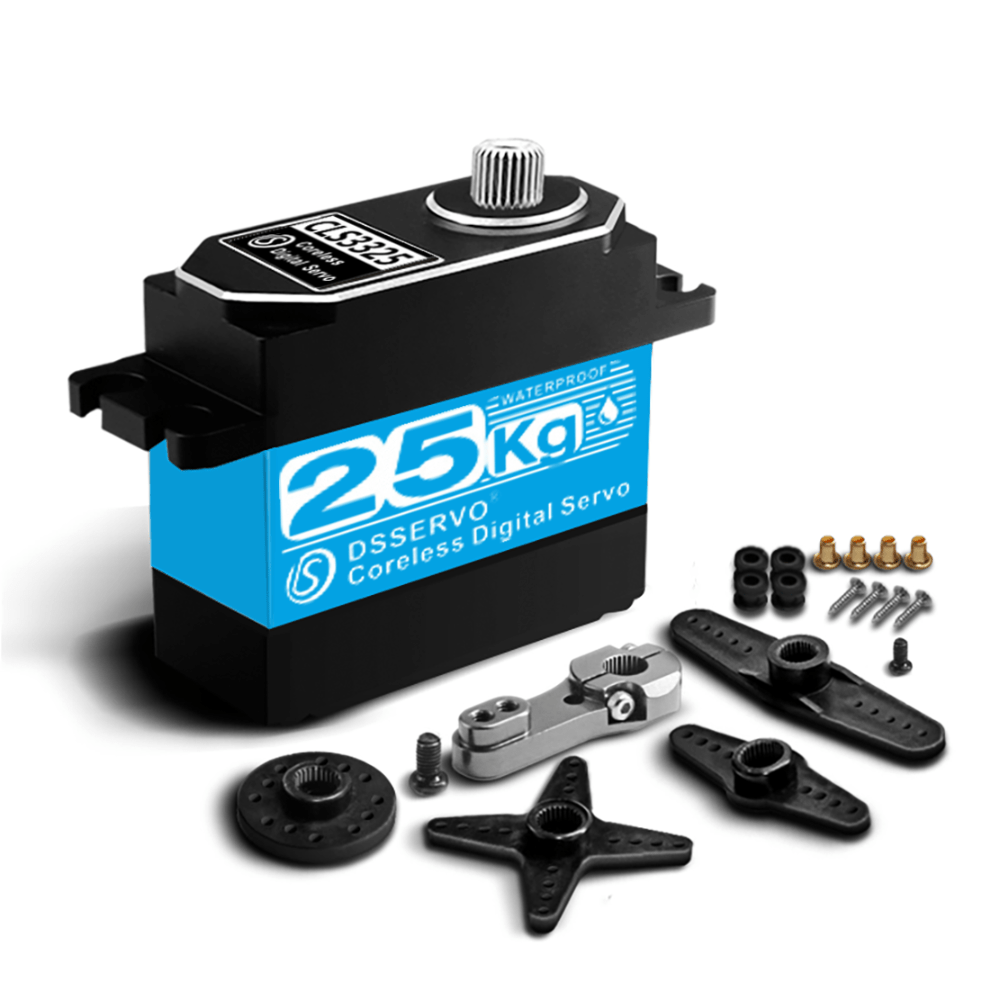

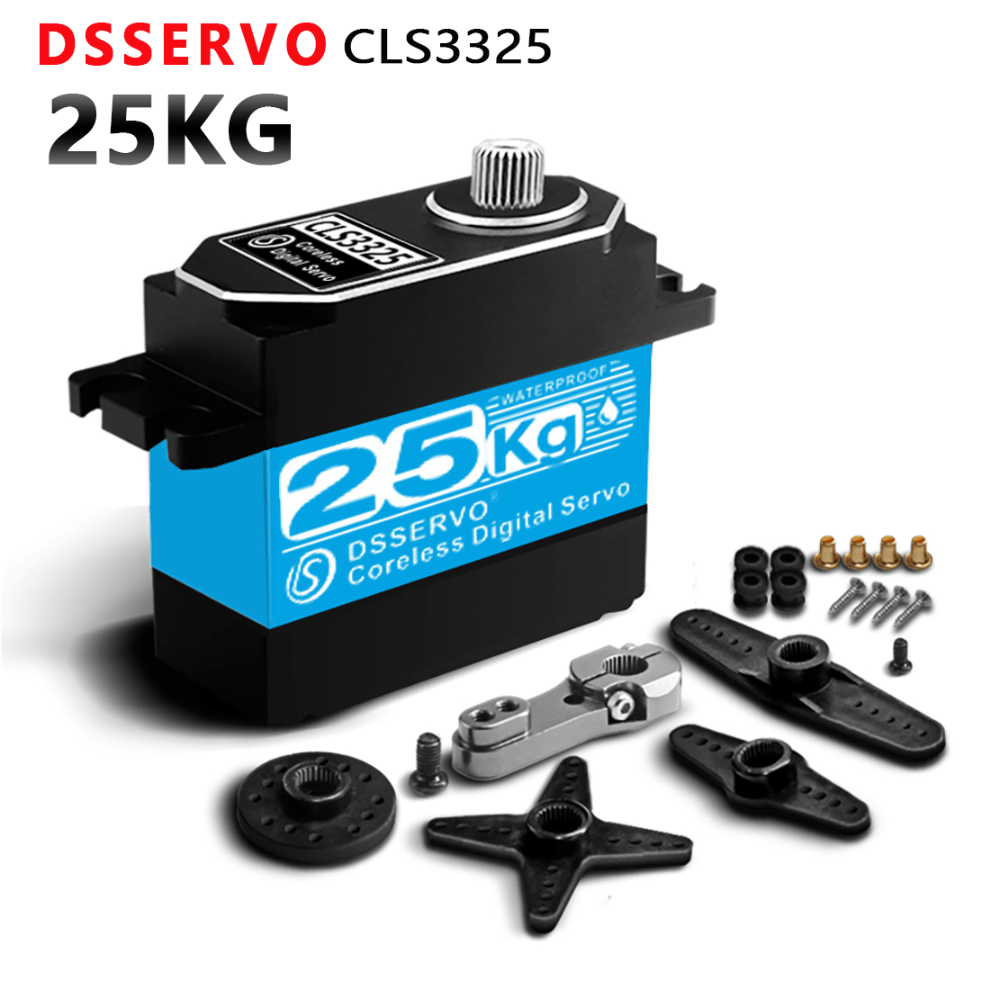

CLS3325 Coreless Digital Servo Motor 25KG 270 Degree Full Metal Gear HV

CLS3325 Coreless Digital Servo – 25KG | 270° | Full Metal Gear | HV

The CLS3325 is a high-performance coreless digital servo delivering a solid 25kg/cm torque output with the speed and efficiency advantages of a coreless motor. With a wide 270° rotation range, a full metal gear train, and high-voltage compatibility, it strikes the ideal balance between power, precision, and responsiveness for large-scale RC aircraft, robotic systems, and demanding automation platforms. The coreless motor eliminates iron core losses found in conventional motors, resulting in faster acceleration, smoother operation, and greater efficiency under sustained load.

Key Specifications

• Model: CLS3325
• Type: Coreless Digital Servo (High Voltage)
• Torque: 25 kg/cm (at 8.4V)
• Rotation Angle: 270°
• Gear Material: Full metal gears
• Motor Type: Coreless
• Control Signal: PWM digital signal
• Operating Voltage: 5V – 8.4V (HV compatible)
• Connector: Standard JR/Futaba compatible

Key Features

• Coreless motor – faster acceleration, smoother operation, and higher efficiency vs cored motors
• 25kg/cm torque at 8.4V – ideal for large-scale RC aircraft and robotic applications
• 270° rotation range for wider control surface deflection and extended robotic joint movement
• High-voltage (HV) compatible – connect directly to 2S LiPo without voltage regulation loss
• Full metal gear train for maximum durability under high and sustained loads
• Digital control for fast response, precise positioning, and strong holding torque

Applications

• Large-scale RC aircraft (ailerons, elevator, rudder, flaps)
• RC cars, trucks, and heavy crawlers
• Robotic arms and joints
• Industrial automation and motion control
• Pan-tilt systems and camera gimbals
