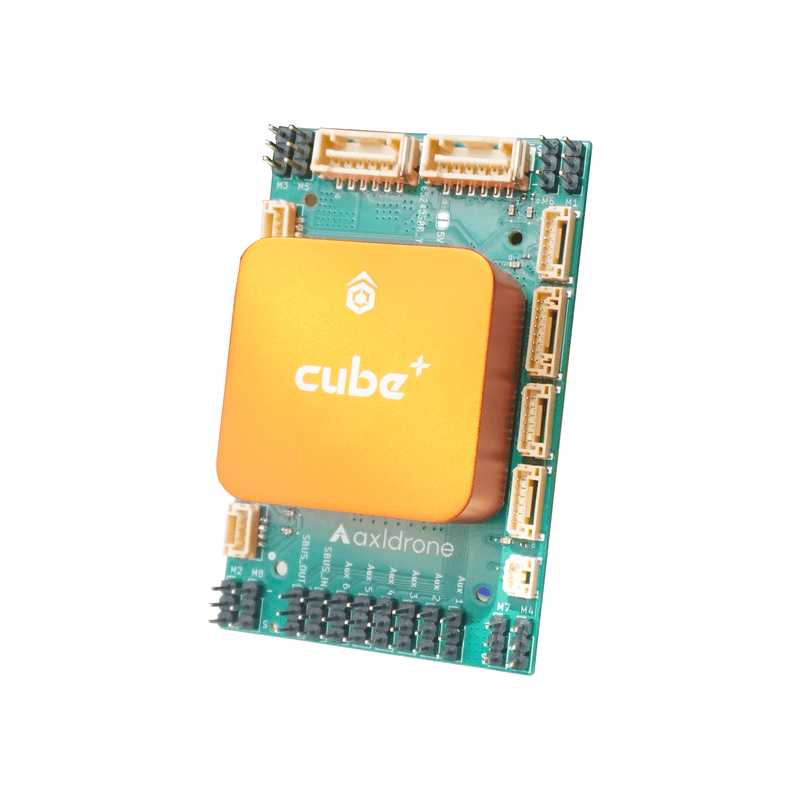

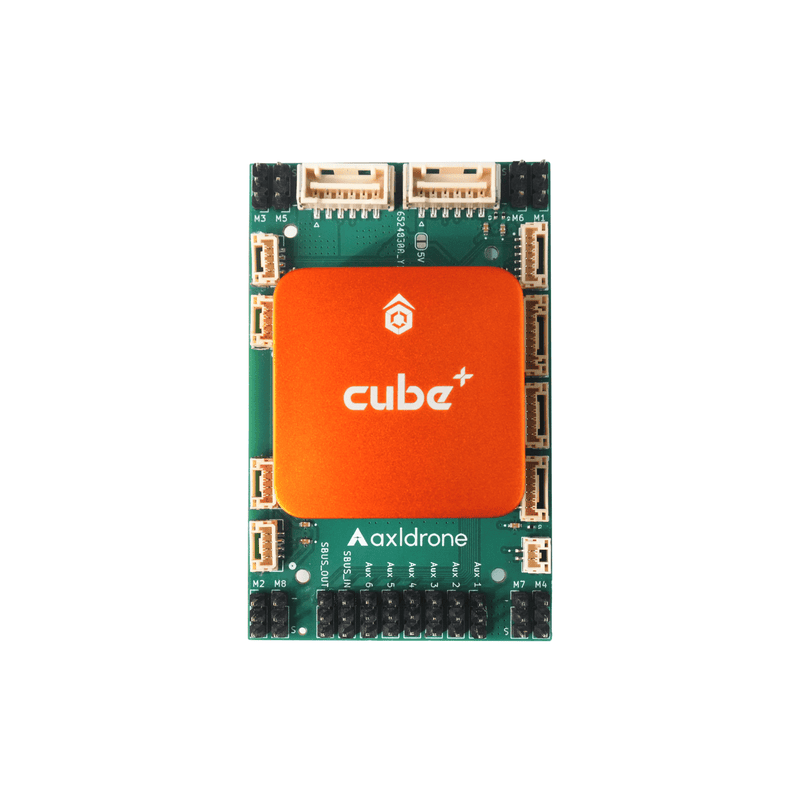

Carrier Board with Cube Orange

Dimensions (L × W × H): 80 mm × 50 mm ×  24 mm

Weight: 54 g

Power Input: 5 V

Power Ports: 2 × Power inputs

PWM Outputs: 8 × Motor outputs (M1–M8)

AUX / Servo Outputs: 6 × Servo outputs (shared AUX rail, external power capable)

RC Input: SBus In / Out (2.54 mm standard RC input/output)

UART / Serial Ports: 2 × UART (SERIAL1, SERIAL2)

I2C Ports: 1 × I2C

CAN Bus: 1 × CAN1

GPS Ports: 2 × GPS (GPS1, GPS2)

Companion Computer Interface: 1 × SBC Port

USB: 1 (For firmware flashing & configuration)

Buzzer Port: 1

Operating Temperature: –10 °C to +80 °C
