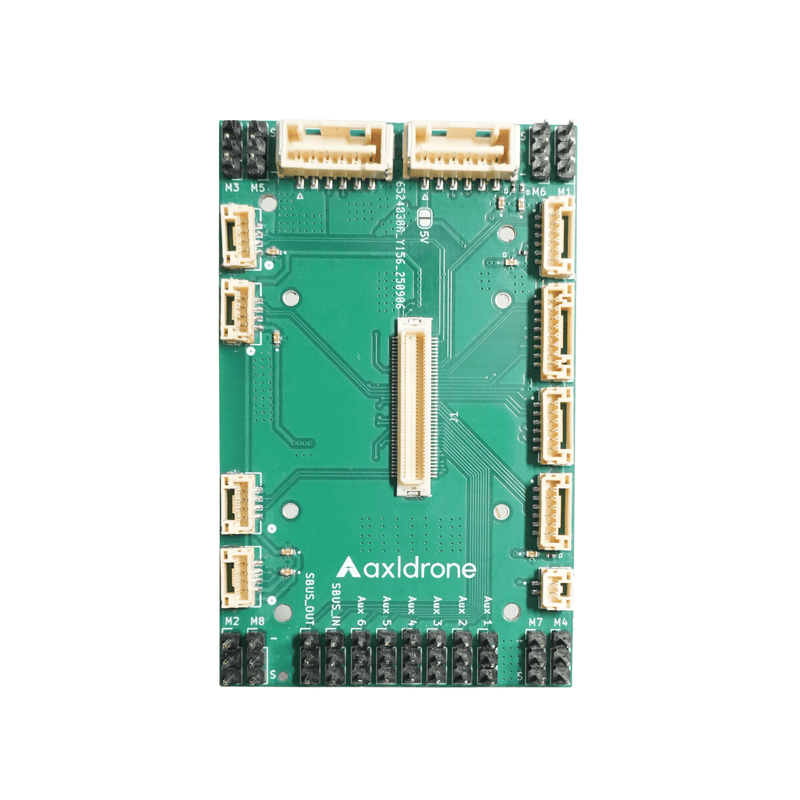

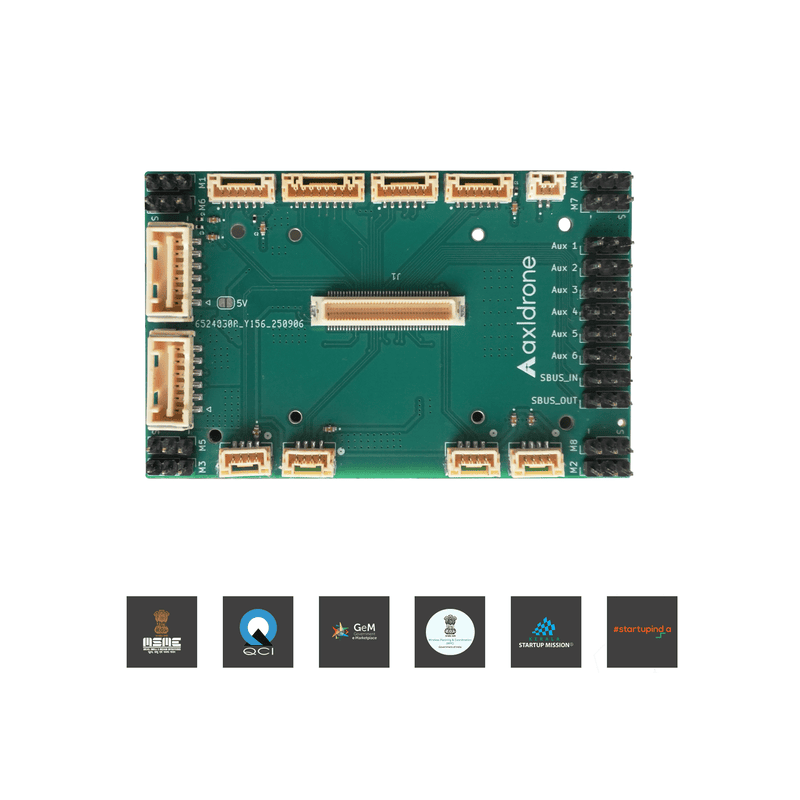

Carrier Board

Carrier Board

Rs. 17,500.00
Rs. 17,500.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Model: Carrier Board

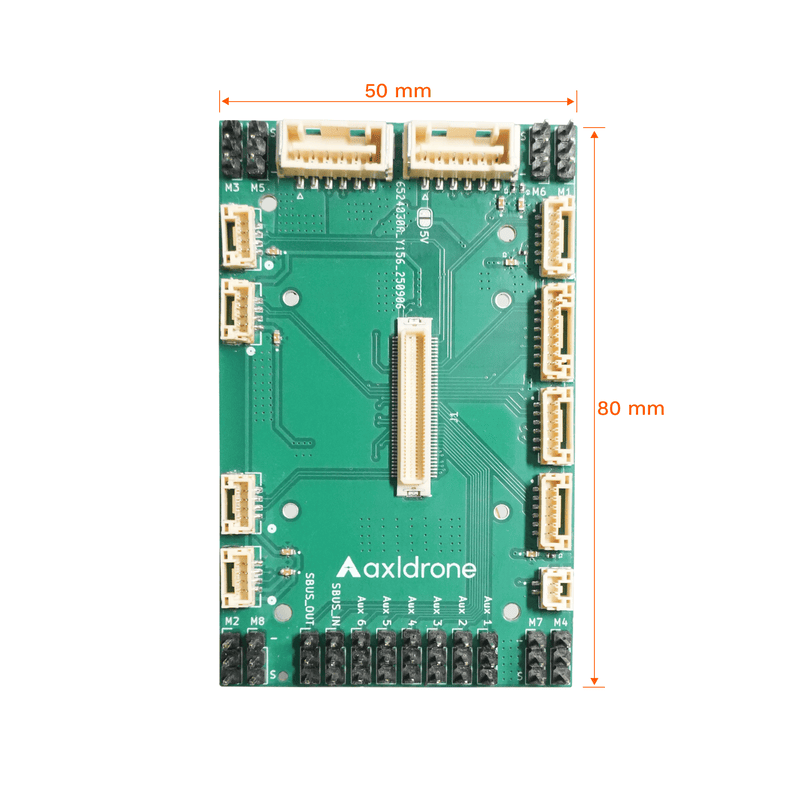

Dimensions (L × W × H): 80 mm × 50 mm × 12 mm
Weight: 21 g
Power Input: 5 V

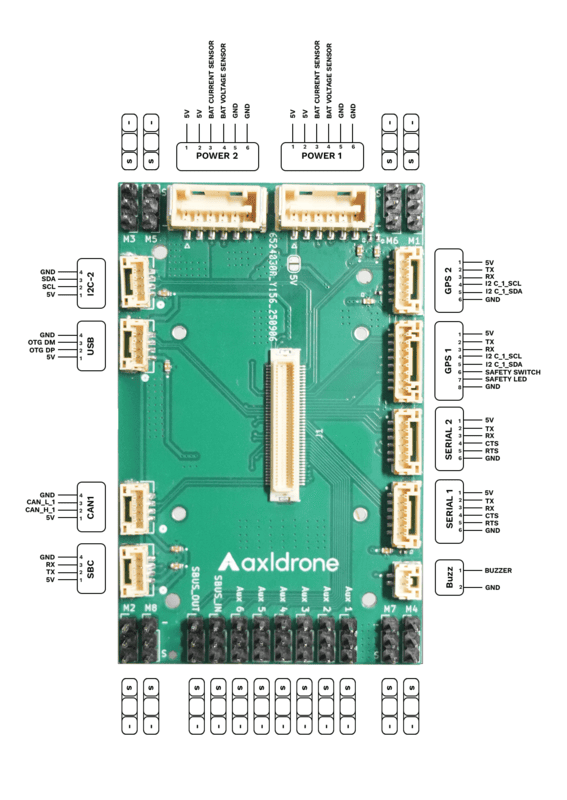

Power Ports: 2 × Power inputs
PWM Outputs: 8 × Motor outputs (M1–M8)
AUX / Servo Outputs: 6 × Servo outputs
RC Input: SBus In / Out (2.54 mm standard)
UART / Serial Ports: 2 × UART (SERIAL1, SERIAL2)
I2C Ports: 1 × I2C
CAN Bus: 1 × CAN1
GPS Ports: 2 × GPS (GPS1, GPS2)
Companion Computer Interface: 1 × SBC Port
USB: 1 (For firmware flashing & configuration)
Buzzer Port: 1
Cube Interface: Dedicated slot for Cube Orange autopilot
Operating Temperature: –10 °C to 80 °C
Firmware Support: PX4 / ArduPilot (Cube ecosystem)
