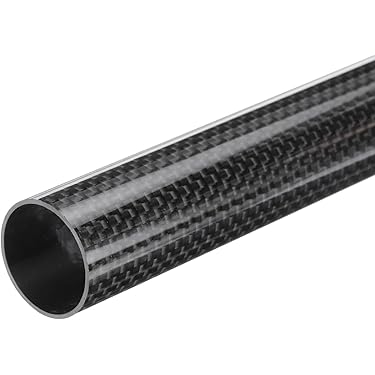

Carbon Fiber Tube 45mm OD x 42mm ID x 1000mm Length 3K

Carbon Fiber Tube – 45mm OD × 42mm ID × 1000mm | 3K Roll Wrapped

This 45mm OD 3K carbon fiber tube is a precision-engineered structural component that sits perfectly between compact and heavy-duty – offering an ideal balance of rigidity, weight, and versatility. With a 1.5mm wall thickness, a full 1000mm length, and a 3K carbon fiber weave, it delivers exceptional stiffness and torsional strength for drone arms, RC aircraft booms, robotic frames, and structural engineering applications. The fine 3K weave pattern provides a superior surface finish and consistent structural performance throughout the tube.

Key Specifications

• Outer Diameter (OD): 45mm
• Inner Diameter (ID): 42mm
• Wall Thickness: 1.5mm
• Length: 1000mm (1 metre)
• Weave: 3K carbon fiber (3,000 filaments per tow)
• Construction: Roll wrapped
• Finish: Glossy carbon weave pattern

Key Features

• 3K carbon fiber weave – fine, dense weave for superior surface finish and structural consistency
• Exceptional strength-to-weight ratio – lighter and stiffer than aluminium at the same diameter
• Roll-wrapped construction for consistent wall thickness and superior structural integrity
• 1000mm length – can be cut to any required length with a diamond or carbide cutting tool
• High torsional stiffness – resists flex and vibration under load
• Compatible with standard 45mm carbon fiber tube clamps and connectors

Applications

• Heavy-lift drone and UAV arms
• Large-scale RC aircraft fuselage and tail booms
• Robotic frames and structural members
• Industrial structural and engineering applications
• Camera gimbal booms and support structures
• General prototyping and fabrication
