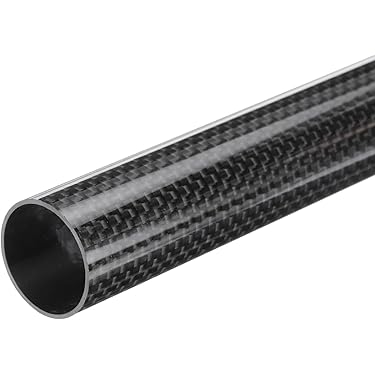

Carbon Fiber Tube 44mm OD x 42mm ID x 1000mm Length 3K

Carbon Fiber Tube – 44mm OD × 42mm ID × 1000mm | 3K Roll Wrapped

This 44mm OD 3K carbon fiber tube is a lightweight structural component with a 1mm wall thickness – engineered for weight-sensitive builds where every gram counts. With a full 1000mm length and a fine 3K carbon fiber weave, it delivers excellent stiffness and a superior surface finish for drone arms, RC aircraft booms, robotic frames, and precision engineering applications. The slim 1mm wall makes it notably lighter than thicker-wall 44–45mm variants, making it the ideal choice for performance-focused UAV and RC builds.

Key Specifications

• Outer Diameter (OD): 44mm
• Inner Diameter (ID): 42mm
• Wall Thickness: 1mm
• Length: 1000mm (1 metre)
• Weave: 3K carbon fiber (3,000 filaments per tow)
• Construction: Roll wrapped
• Finish: Glossy carbon weave pattern

Key Features

• 3K carbon fiber weave – fine, dense weave for superior surface finish and structural consistency
• 1mm wall thickness – lightweight construction ideal for weight-sensitive drone and RC builds
• Exceptional strength-to-weight ratio – lighter and stiffer than aluminium at the same diameter
• Roll-wrapped construction for consistent wall thickness and superior structural integrity
• 1000mm length – can be cut to any required length with a diamond or carbide cutting tool
• High torsional stiffness – resists flex and vibration under load

Applications

• Weight-sensitive drone and UAV arms
• Large-scale RC aircraft fuselage and tail booms
• Robotic frames and structural members
• Precision engineering and prototyping
• Camera gimbal booms and support structures
