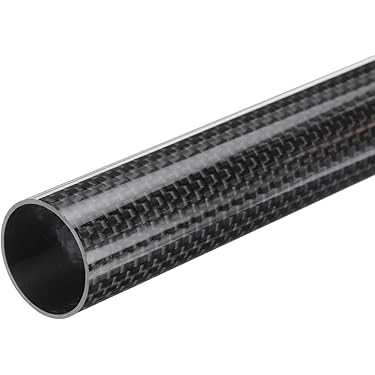

Carbon Fiber Tube 22mm OD x 18mm ID x 1000mm Length 3K

Carbon Fiber Tube – 22mm OD × 18mm ID × 1000mm | 3K Roll Wrapped

This 22mm OD 3K carbon fiber tube is a compact, high-strength structural component ideal for smaller drone arms, FPV frames, RC aircraft tail booms, robotic linkages, and precision engineering applications. With a 2mm wall thickness, a full 1000mm length, and a fine 3K carbon fiber weave, it delivers excellent rigidity and torsional stiffness in a slim, lightweight profile. Whether you’re building a compact multirotor, a lightweight RC aircraft, or a precision robotic arm, the 22mm OD tube gives you the structural integrity you need without the weight penalty.

Key Specifications

• Outer Diameter (OD): 22mm
• Inner Diameter (ID): 18mm
• Wall Thickness: 2mm
• Length: 1000mm (1 metre)
• Weave: 3K carbon fiber (3,000 filaments per tow)
• Construction: Roll wrapped
• Finish: Glossy carbon weave pattern

Key Features

• 3K carbon fiber weave – fine, dense weave for superior surface finish and structural consistency
• 2mm wall thickness – robust construction for demanding structural applications at this diameter
• Exceptional strength-to-weight ratio – lighter and stiffer than aluminium at the same diameter
• Roll-wrapped construction for consistent wall thickness and superior structural integrity
• 1000mm length – can be cut to any required length with a diamond or carbide cutting tool
• High torsional stiffness – resists flex and vibration under load

Applications

• Compact drone and multirotor arms
• FPV racing drone frames
• RC aircraft tail booms and fuselage members
• Robotic arms and linkage members
• Precision engineering and prototyping
• Camera gimbal support structures
