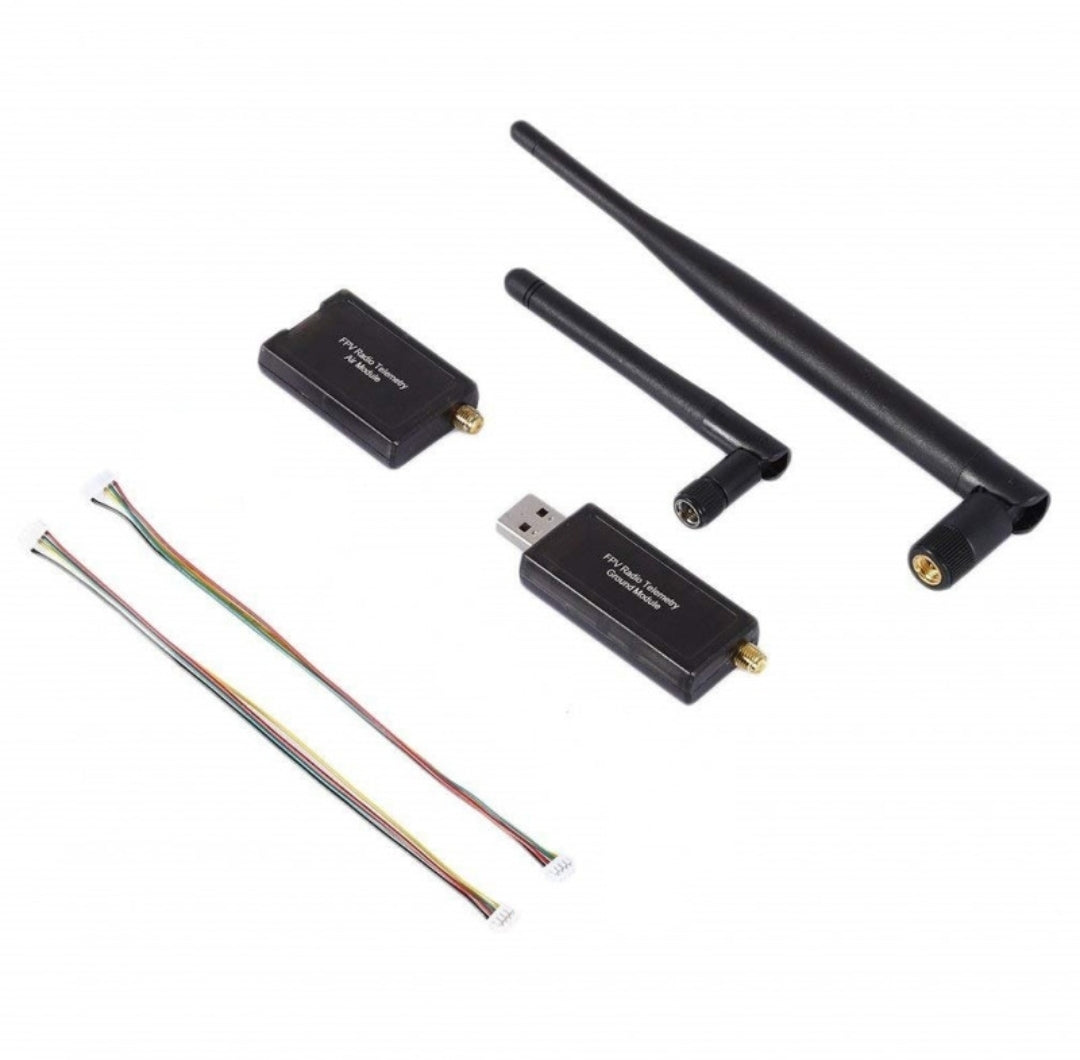

915Mhz 100mW Mini Telemetry Kit
915Mhz 100mW Mini Telemetry Kit
Couldn't load pickup availability
Small size and lightweight
CP2102 high-quality USB to TTL chips
915MHZ
Support MWC / APM / PX4 / Pixhawk other open-source flight control
MAVLink Framework Agreement
Open Source Firmware Frequency-hopping spread spectrum (FHSS)
2-way full-duplex communication adaptive TDM
Up to 25% can be corrected bit errors
Based on Si1000 and Si4432 wireless microcontroller modules.
Very small size & Lightweight
MAVLink protocol framing and status reporting
Interchangeable air and ground modules
Micro-USB port
UART interface
Error correction corrects up to 25% of bit errors
Configurable through Mission Planner and APM Planner
The demonstrated range of several kilometers with a small Omni antenna
Package Included :
1× 3DR Radio Telemetry with the case (Air+Gnd module)
2× cables (APM/PIX).
2× 3.5dbi antennas.
| Specification | |
|---|---|
| Frequency(MHz) | 915 |
| Rated Power (mW) | 100 |
| Range(m) | 1600 |
| Receive Sensitivity(dBm) | -117 |
| Air Data Rates(kbps) | 250 |
| Operating Temperature (°C) | -10 to 85 |
| Weight(gm) | 65 |
| Shipment Weight | 0.07 kg |
| Shipment Dimensions | 35 × 10 × 2 cm |
