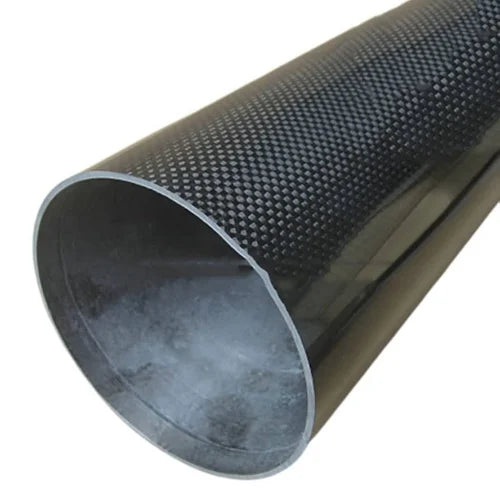

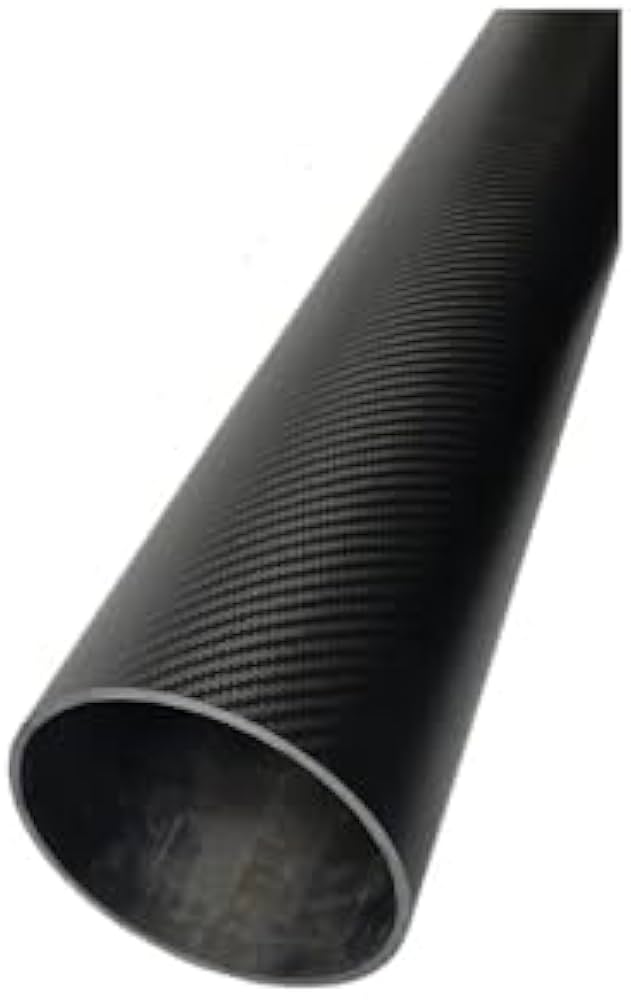

3K Carbon Fiber Round Tube 110mm OD x 97mm ID x 1000mm

3K Carbon Fiber Round Tube – 110mm OD x 97mm ID x 1000mm

A heavy-wall, large-diameter 3K carbon fiber round tube built for applications demanding exceptional structural strength and rigidity. With a 110mm outer diameter, 6.5mm wall thickness, and 1000mm length, this tube is engineered for the most demanding heavy-lift drone frames, industrial UAV booms, robotics, and structural engineering projects where wall strength is critical.

Specifications

• Outer Diameter (OD): 110mm
• Inner Diameter (ID): 97mm
• Wall Thickness: 6.5mm
• Length: 1000mm (1 metre)
• Weave: 3K plain weave carbon fiber
• Finish: Gloss exterior with visible 3K weave pattern
• Construction: Roll-wrapped carbon fiber composite

Key Features

• 6.5mm heavy wall thickness — exceptional torsional stiffness and load-bearing capacity
• 3K plain weave — premium aesthetic with outstanding structural integrity
• High stiffness-to-weight ratio — far lighter than steel or aluminium equivalents of similar strength
• Large 110mm diameter — ideal for heavy-lift UAV arms, industrial booms, and structural columns
• Consistent wall thickness and diameter along the full 1000mm length
• Compatible with standard carbon fiber adhesives and epoxy resins
• Gloss finish — professional appearance for visible structural components

When standard-wall tubes aren’t enough, this heavy-wall 3K carbon fiber tube delivers the structural performance your most demanding builds require — whether it’s a heavy-lift agricultural drone, an industrial UAV platform, or a precision engineering application.
