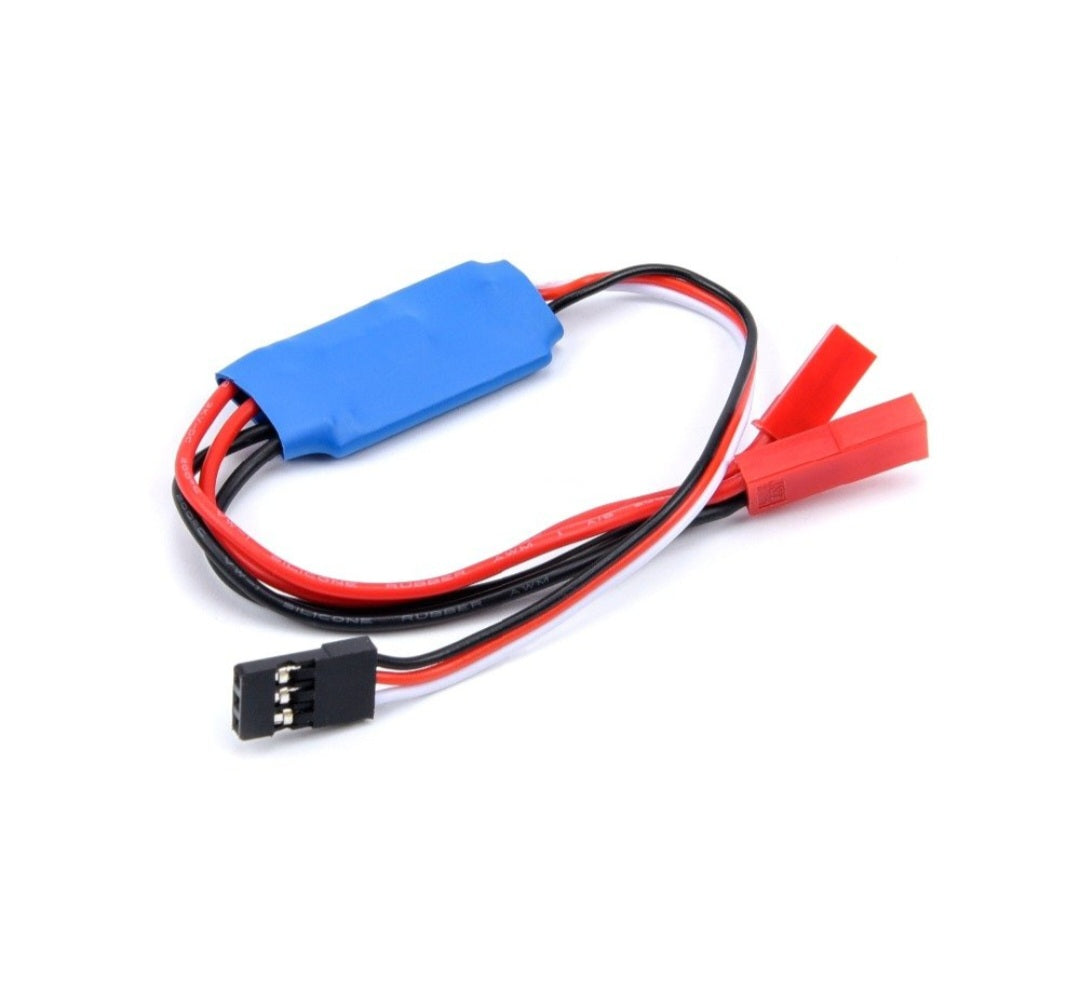

10A RC TX Controlled Relay Switch PWM Receiver
10A RC TX Controlled Relay Switch PWM Receiver
Couldn't load pickup availability
Overall, a 10A RC TX Controlled Relay Switch with PWM Receiver is a versatile component that allows hobbyists and enthusiasts to remotely control various electrical devices or circuits in their RC models or projects. It’s commonly used for turning devices on and off or modulating their operation, enhancing the control and functionality of RC vehicles, drones, and other radio-controlled systems.
This module is a nice little relay switch controlled by a spare auxiliary channel on your receiver. Ideal for switching lights, sound, and any other auxiliary electrical items
When PWM duty is more than 1500us, the switch will turn on; when PWM duty is less than 1400us, the switch will turn off
Package Includes :
1 x 10A RC TX Controlled Relay Switch PWM Receiver
| Specification | |
|---|---|
| Load Current Max (mA) | 10A |
| Input Voltage (V) | 5-28V |
| RX lead length | 100mm |
| Power lead length | 100mm |
| Cable Size (AWG) | 20 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions |
10 × 7 × 1 cm
|
